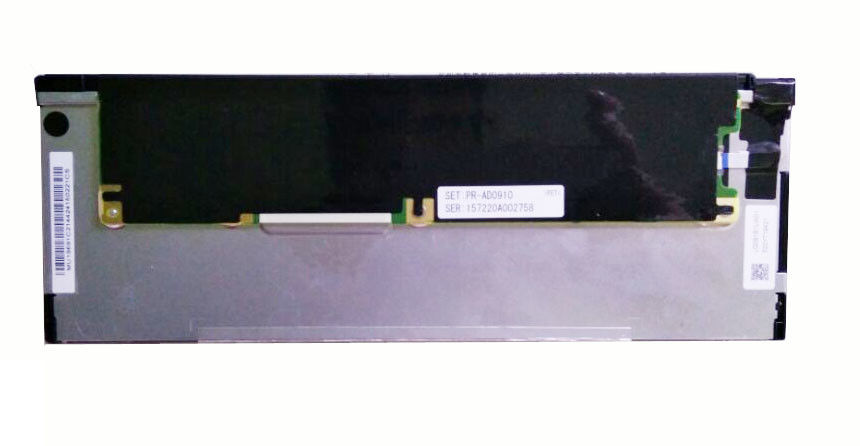

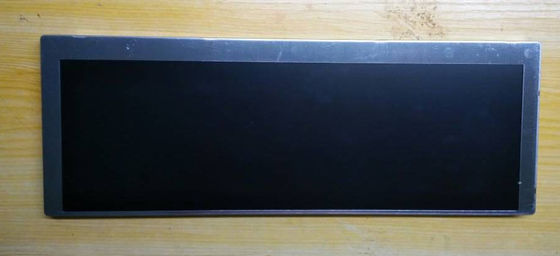

Product Details:
|
| Panel Model: | LQ091B1LW01 | Panel Brand: | Sharp |
|---|---|---|---|
| Brightness: | 380 Cd/m² (Typ.) | Panel Size: | 9.1INCH |
| Signal Interface: | LVDS (1 Ch, 8-bit) , 30 Pins Connector | Lamp Type: | WLED , 50K Hours , With LED Driver |
| Resolution: | 822(RGB)×260, 95PPI | Environment: | Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
| Basic Information : | Luminance | 380 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.315 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7435K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 97% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 822(RGB)×260 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.089×0.267 mm | Pixel Pitch(W×H) | 0.267×0.267 mm [95PPI] | |
| Physical Size : | Active Viewing | 219.474(W)×69.42(H) mm | Overall Dim. | 240(W)×86(H) mm |
| Bezel Opening | 222.4(W)×72.4(H) mm | Overall Depth | 10.0±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | >3:1 | Shape Style | ||
| Fixation : | Side mounting holes (4 pcs) on left, right bezel | |||
| Other Detail : | Mass | 230g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 300/350mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14H-30P-1.25H | 1 pcs | 1.25 mm | 30 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 480/550mA (Typ./Max.) | Input Voltage | 12.0±1.2V | ||
LQ091B1LW01 supports display 822(RGB)×260 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 219.474(W)×69.42(H) mm, outline size of 240(W)×86(H)×10.5(D) mm, viewing area size of 222.4(W)×72.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 230g (Max.). As a TN, Normally White, Transmissive LCM product, LQ091B1LW01 can provides 380 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 76% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver.
