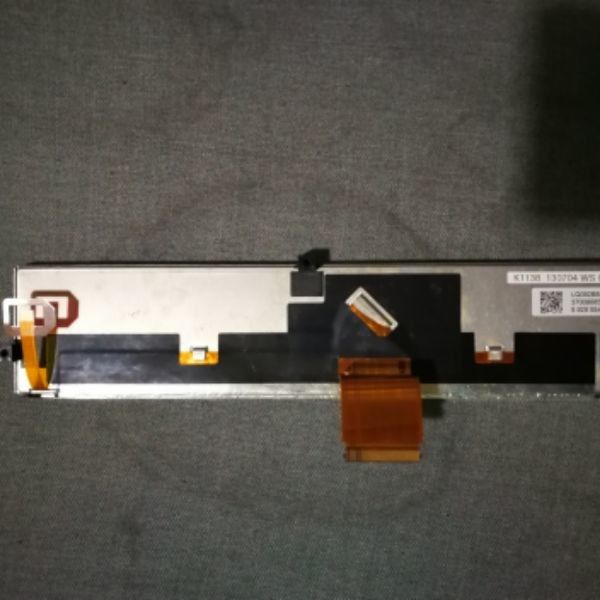

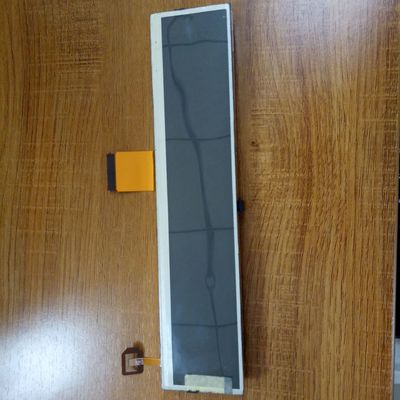

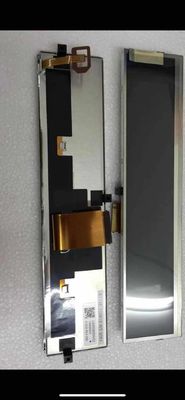

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ092B5DW02 |
|---|---|---|---|
| Screen Size: | 9.2 Inch | Luminance: | 1050 (Typ.)(cd/m²) |
| Backlight: | 6S4P WLED , 10K Hours , No Driver | Signal Type: | Parallel RGB (1 Ch, 6-bit) , 50 Pins FPC |
| Pixel Number: | 960(RGB)×160 105PPI | Max. Ratings: | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 70 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 1050 (Typ.) | 45/45/40/40(Typ.)(CR≥100) | 8/6 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | ASV, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7033K | 262K (6-bit) | X:0.304; Y:0.325 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 58% | 80% | 59% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 61% | 43% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.35/1.40 (Typ./Max.)(9 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Panel Size : | 9.2" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 960(RGB)×160 | RGB Vertical Stripe | 0.240×0.240 [105PPI] | 0.080×0.240 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 230.4(H) × 38.4(V) | 234.6(H) × 42.6(V) | 242(H) × 52.83(V) | 8.3/10.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | >3:1 (H:V) | ||
| Mounting : | Rear mounting Pole (3-Φ2) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 170±10g | - | Antiglare | ||
| Reverse Scan : | Yes (L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Time Controller (T-CON) : | Embedded T-CON |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S4P | 4 strings | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 18.9/20.4V (Typ./Max.) | 60/65mA (Typ./Max.) | 4.54W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 10 pins | 1 pcs | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/13.4/25.0/-8.0V (Typ.)(VSHD/VSHA/VGH/VGL) | 8.0/23.0/0.4/0.4mA (Typ.)(ISHD/ISHA/IGH/IGL) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
LQ092B5DW02 supports display 960(RGB)×160 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 230.4(W)×38.4(H) mm, outline size of 242(W)×52.83(H)×10.8(D) mm, viewing area size of 234.6(W)×42.6(H) mm, with surface treament of Antiglare, net weight of 170±10g. As a ASV, Normally Black, Transmissive LCM product, LQ092B5DW02 can provides 1050 cd/m² display brightness 1000:1 transimissive contrast ratio, 45/45/40/40(Typ.)(CR≥100) (L/R/U/D) viewing angle , and response time of 8/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 58% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
