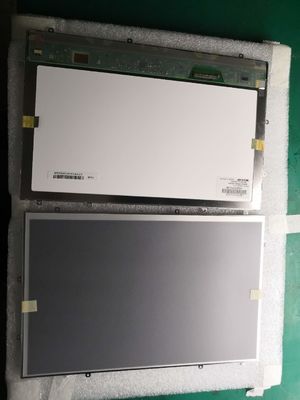

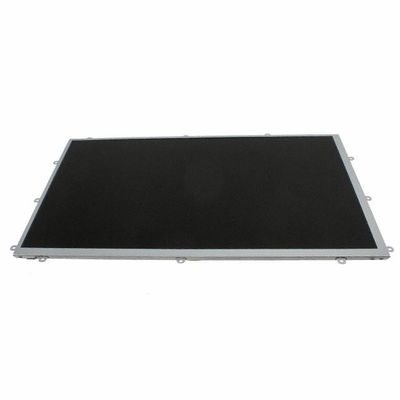

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ101K1LY04 |
|---|---|---|---|
| Brightness: | 400cd/m² | Panel Size: | 10.1INCH |
| Resolution: | 1280(RGB)×800, WXGA, 149PPI | Signal Interface: | LVDS (1 Ch, 8-bit) , 40 Pins Connector |
| Lamp Type: | 7S6P WLED , 20K Hours , Without Driver | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ101 Series LQ101K1LY05 LQ101K1LY04
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.0565×0.1695 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1695×0.1695 mm (H×V) [149PPI] | |
| Mechanical Size : | Display Area | 216.96×135.6 mm (H×V) | Bezel Area | 220.56×139.2 mm (H×V) |
| Outline Dim. | 237.94×156.66 mm (H×V) | Outline Depth | 2.9/5.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (12 pcs) on left, right, up, down slugs | |||
| Other Features : | Weight | 165/185g (Typ./Max.) | Surface | Glare (Haze 0%), Reflection 1.25% (Typ.) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | PSV, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.318; Wy:0.344 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6139K | White Uniformity | 1.25/1.43 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Life Time | 20K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 7S6P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 21.0/24.5V (Min./Max.) | Current Input | 15.5mA (Typ.) | ||
| Consumption | 1.95W (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 235/375mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-040E-12 | 0.5 mm | 40 pins | 1 pcs | ||
LQ101K1LY04 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 237.94(W)×156.66(H)×5.3(D) mm, viewing area size of 220.56(W)×139.2(H) mm, with surface treament of Glare (Haze 0%), Reflection 1.25% (Typ.), net weight of 165/185g (Typ./Max.). As a PSV, Normally Black, Transmissive LCM product, LQ101K1LY04 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed.
