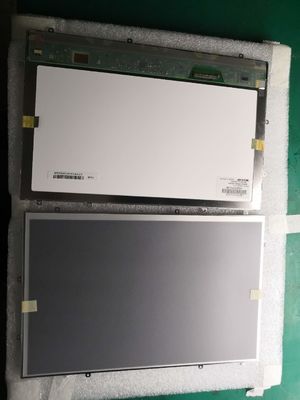

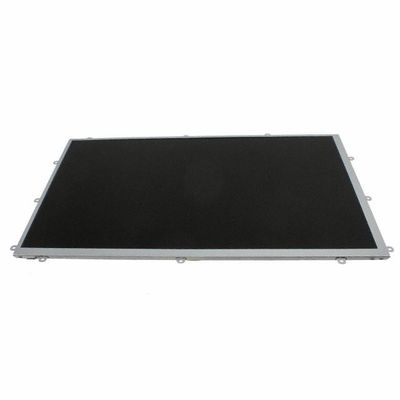

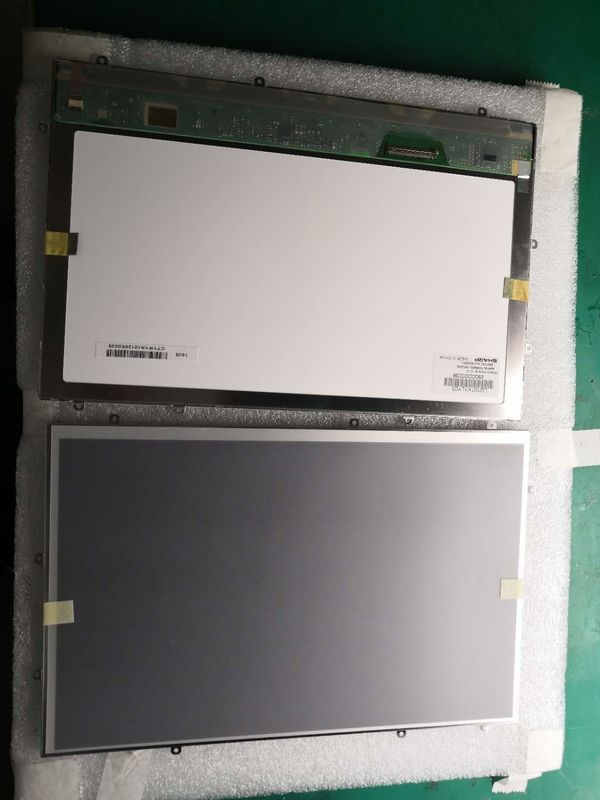

Product Details:
|
| Diagonal Size: | 10.1 Inch | Model: | LQ101K1LY05 |
|---|---|---|---|
| Brand: | Sharp | Luminance: | 400 Cd/m² (Typ.) |
| Pixel Format: | 1280×800(RGB) [WXGA] 149PPI | Light Source: | WLED , 100K Hours , With LED Driver |
| Interface Type: | LVDS (1 Ch, 8-bit) , 20 Pins Connector | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ101 Series LQ101K1LY05 LQ101K1LY04
| Screen Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280×800(RGB), WXGA | RGB Horizontal Stripe | 0.1695×0.0565 mm | 0.1695×0.1695 mm [149PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 216.96×135.6 mm | 220.6×139.2 mm | 230.7×152.7 mm | 6.0/9.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 270g | - | Glare (Haze 0%), Reflection 1.25% (Typ.) | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | PSV, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6371K | 16.7M (8-bit) | X:0.315; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 67% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 100K(Typ.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHLS-TF | 1 pcs | 6 pins | 1.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0V (Typ.) | 285/400mA (Typ./Max.) | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 235/375mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF14H-20P-1.25H(56) | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-040A | |
LQ101K1LY05 supports display 1280×800(RGB) (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 230.7(W)×152.7(H)×9.2(D) mm, viewing area size of 220.6(W)×139.2(H) mm, with surface treament of Glare (Haze 0%), Reflection 1.25% (Typ.), net weight of 270g. As a PSV, Normally Black, Transmissive LCM product, LQ101K1LY05 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver.
