Product Details:
|
| Model: | LQ101R1SX01A | Diagonal Size: | 10.1 Inch |
|---|---|---|---|
| Brand: | Sharp | Luminance: | 400 Cd/m² (Typ.) |
| Light Source: | WLED [7S6P] , 10K Hours , W/O Driver | Interface Type: | MIPI (2 Ch, 4 Data Lanes) 50 Pins Connector |
| Pixel Format: | 2560(RGB)×1600 [WQXGA] 299PPI | Environment: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ101 Series LQ101R1SX03 LQ101R1SX01A LQ101R1JX02
| Panel Size : | 10.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 2560(RGB)×1600, WQXGA | RGB Vertical Stripe | 0.02825×0.08475 mm | 0.08475×0.08475 mm [299PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 216.96×135.6 mm | - | 228×148.5 mm | 1.88/4.60 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 151±15g | Clear, Hard coating | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Min.)(CR≥10) | Symmetry | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 51% | 71% | 53% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 53% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 185/370mA (Typ./Max.) | 3.3V (Typ.) | - | ||||

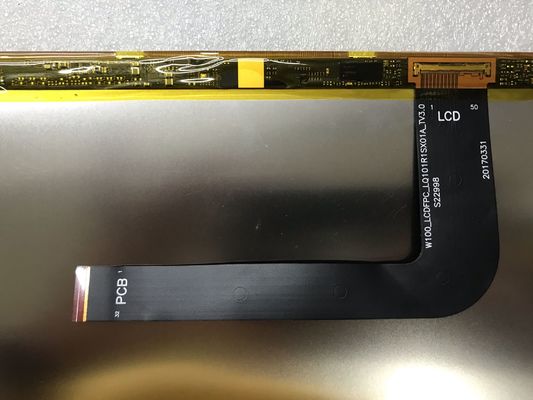

| Interface Features : | Position | Type | Interface | |||
| Connector | MIPI (2 ch, 4 data lanes) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20525-050E-02 | 1 pcs | 0.4 mm | 50 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6 strings | 7S6P | 10K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20.0/21.0mA (Typ./Max.) | 18.2/21.0/23.1V (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||

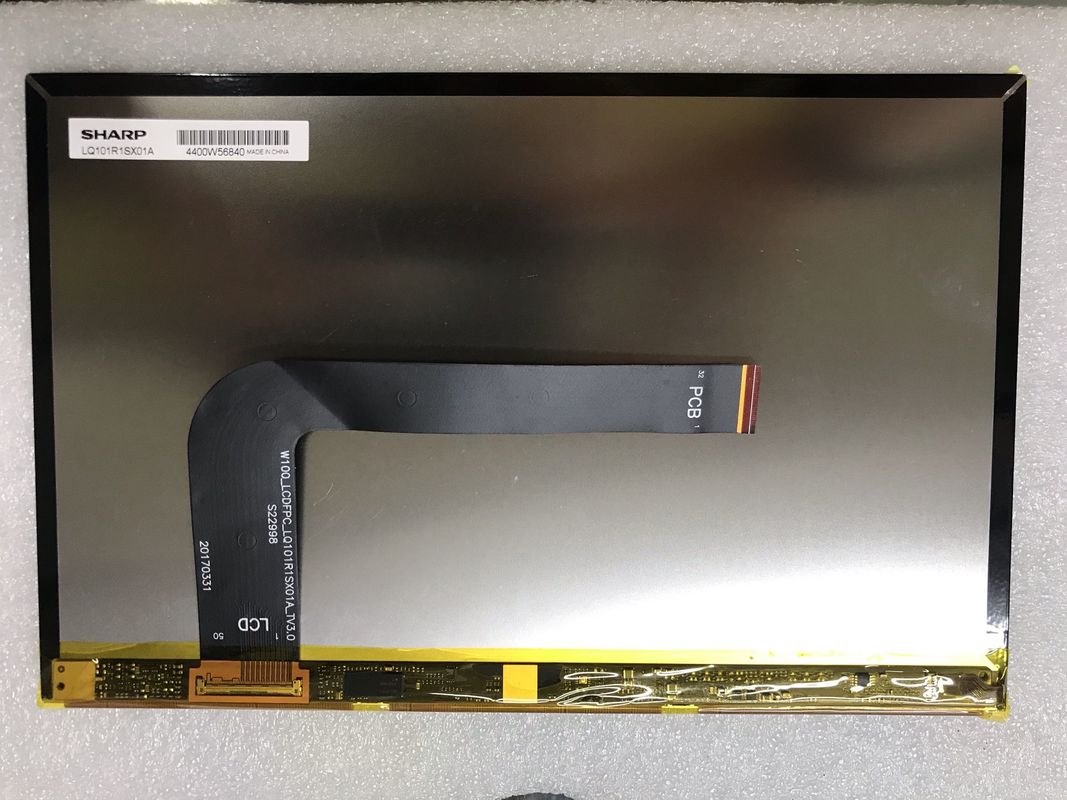

LQ101R1SX01A supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 299 PPI. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 228(W)×148.5(H)×4.6(D) mm, with surface treament of Clear, Hard coating, net weight of 151±15g. As a IPS, Normally Black, Transmissive LCM product, LQ101R1SX01A can provides 400 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
