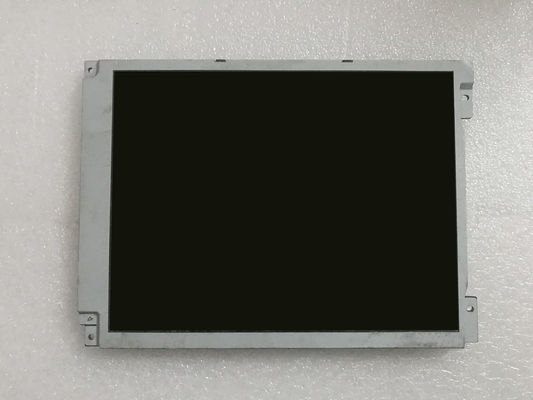

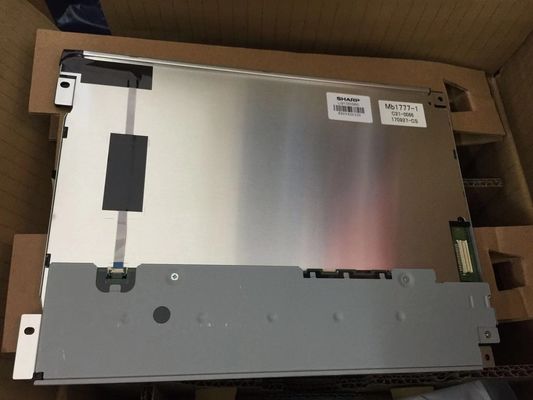

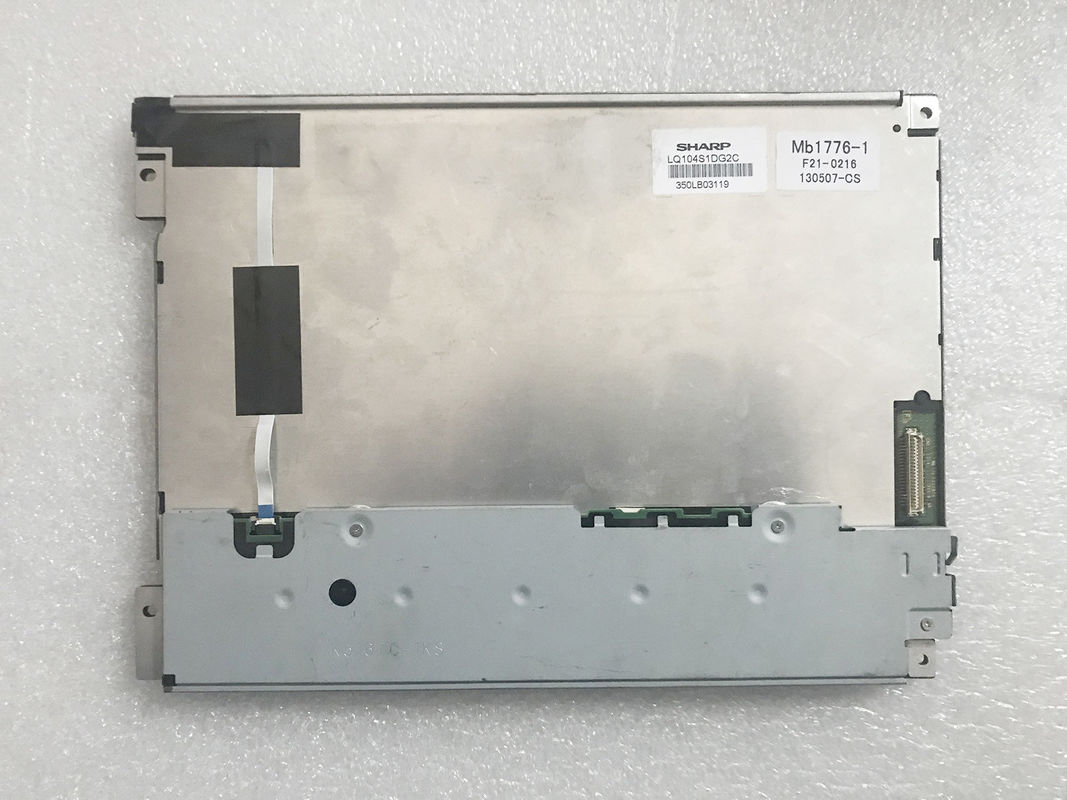

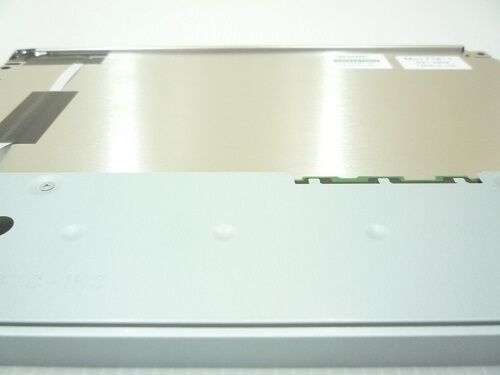

Product Details:
|
| Brand: | Sharp | Model: | LQ104S1DG2C |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 96PPI | Diagonal Size: | 10.4 Inch |
| Light Source: | WLED , 50K Hours , With LED Driver | Luminance: | 350 Cd/m² (Typ.) |
| Interface Type: | Parallel RGB (1 Ch, 6-bit) 41 Pins Connector | Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104S1DG51 LQ104S1DG34 LQ104S1DG31 LQ104S1DG2C
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.088×0.264 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.264×0.264 (H×V) [96PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 214.6(H) × 162.4(V) |
| Outline Dim.(mm) | 246.5(H) × 179.3(V) | Depth(mm) | 11.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.4, 2-R1.7) | |||
| Other Spec : | Weight | 550g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 35 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.305; Y:0.310 | Display Colors | 262K (6-bit) |
| Color Temperature | 7181K | White Uniformity | 1.45 (Max.)(5 points) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 250/350mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9B-41P-1V(32) | 1 pcs | 41 pins | 1.0 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 300/400mA (Typ./Max.) | ||
LQ104S1DG2C supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.3(H)×11(D) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 550g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ104S1DG2C can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver.
