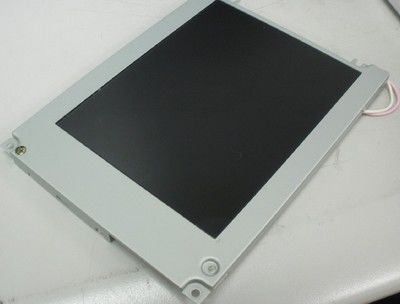

Product Details:
|
| Brand: | Sharp | Model: | LQ104S1DG31 |
|---|---|---|---|
| Diagonal Size: | 10.4 Inch | Luminance: | 350 Cd/m² (Typ.) |
| Interface Type: | CMOS (1 Ch, 6-bit) , 41 Pins Connector | Light Source: | CCFL [2 Pcs] , 50K Hours , W/O Driver |
| Pixel Format: | 800(RGB)×600 [SVGA] 96PPI | Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104S1LG21 LQ104S1DG61 LQ104S1DG51 LQ104S1DG34 LQ104S1DG31
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 70/70/50/60 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 300 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| White Variation : | 1.45 (Max.)(5 points) | ||
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.264×0.264 [96PPI] | 0.088×0.264 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 211.2(H) × 158.4(V) | 215.4(H) × 162.4(V) | 243(H) × 183.8(V) | 11.5 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 600g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Reverse Scan : | Yes (180°) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 6.6W |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 2 pcs | Straight | 50K(Min.) | Replaceable | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 467V (Typ.) | 3.5/6.0/6.5mA (Min./Typ./Max.) | 5.6W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 35/60/70KHz (Min./Typ./Max.) | 1300V (Max.)(Ta=-30℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-02(8.0)VS-1N | 8.0 mm | 2 pins | 2 pcs | BLL-2PINS-HL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 300/200mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | VIL≤0.9V; 2.1V≤VIH | |||||
| Interface Features : | Position | Signal | Type | |||
| - | CMOS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF9MA-41P-1V | 1.0 mm | 41 pins | 1 pcs | DRGB-41P1C6B-010C | |

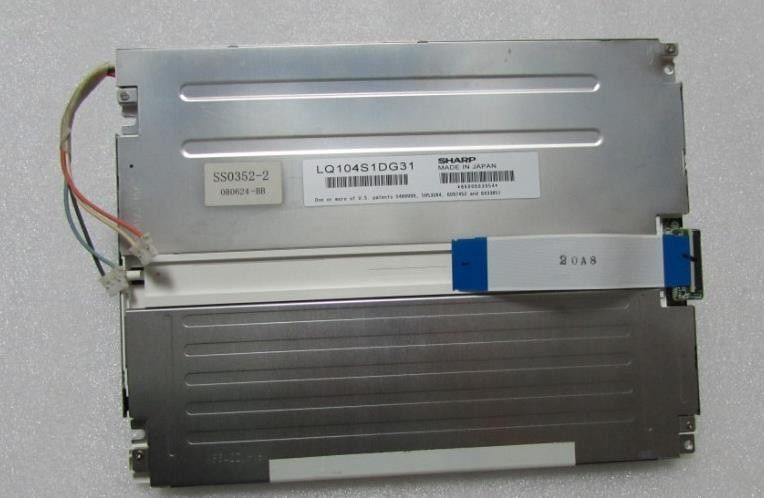

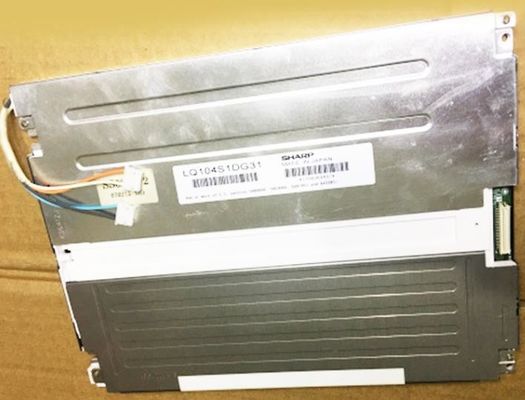

LQ104S1DG31 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×183.8(H) mm, viewing area size of 215.4(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 600g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104S1DG31 can provides 350 cd/m² display brightness 300:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed.
