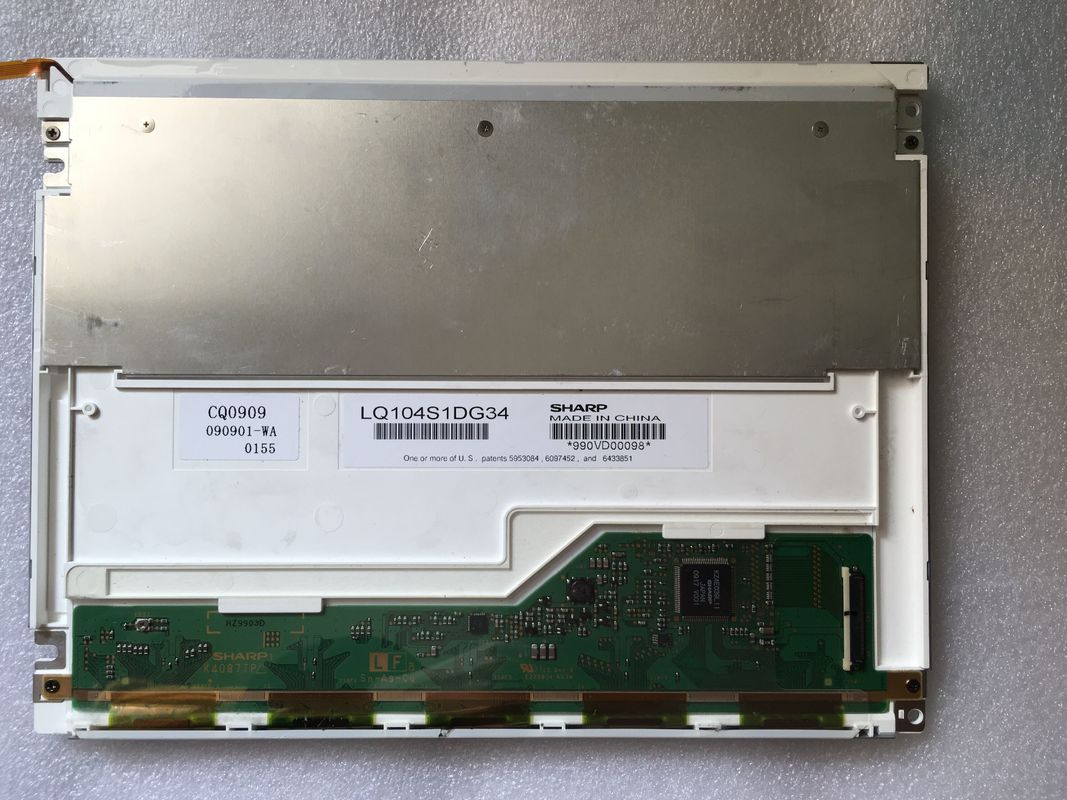

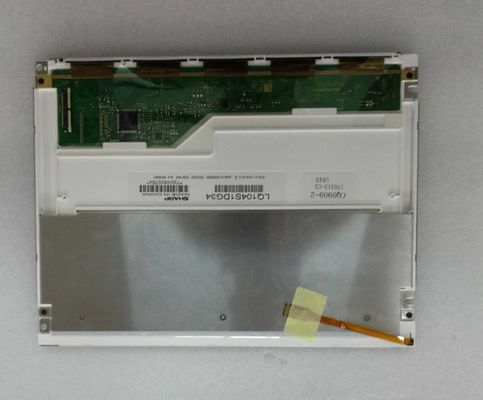

Product Details:
|
| Brand: | Sharp | Model: | LQ104S1DG34 |
|---|---|---|---|
| Diagonal Size: | 10.4 Inch | Luminance: | 250 Cd/m² (Typ.) |
| Pixel Format: | 800(RGB)×600 [SVGA] 96PPI | Interface Type: | CMOS (1 Ch, 6-bit) , 40 Pins Connector |
| Light Source: | WLED [10S3P] , 25K Hours , W/O Driver | Environment: | Operating Temperature: 0 ~ 75 °C ; Storage Temperature: -25 ~ 75 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104S1LG21 LQ104S1DG61 LQ104S1DG51 LQ104S1DG34 LQ104S1DG31
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 70/70/50/60 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| White Variation : | 1.45 (Max.)(5 points) | ||
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.264×0.264 [96PPI] | 0.088×0.264 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 211.2(H) × 158.4(V) | 215.4(H) × 162.4(V) | 243(H) × 183.8(V) | 9.5 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 500g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10S3P | 3 strings | 25K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 31.0/36.0V (Typ./Max.) | 18/20mA (Typ./Max.) | 1.7W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 6 pins | 1 pcs | BLE-6PINS-ACACAC | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 300/450mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | CMOS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| IRISO | IMSA-9686S-40B-GF | 0.5 mm | 40 pins | 1 pcs | ||
LQ104S1DG34 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×183.8(H)×9.5(D) mm, viewing area size of 215.4(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 500g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104S1DG34 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 10S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, external backlight driver is additionally needed.
