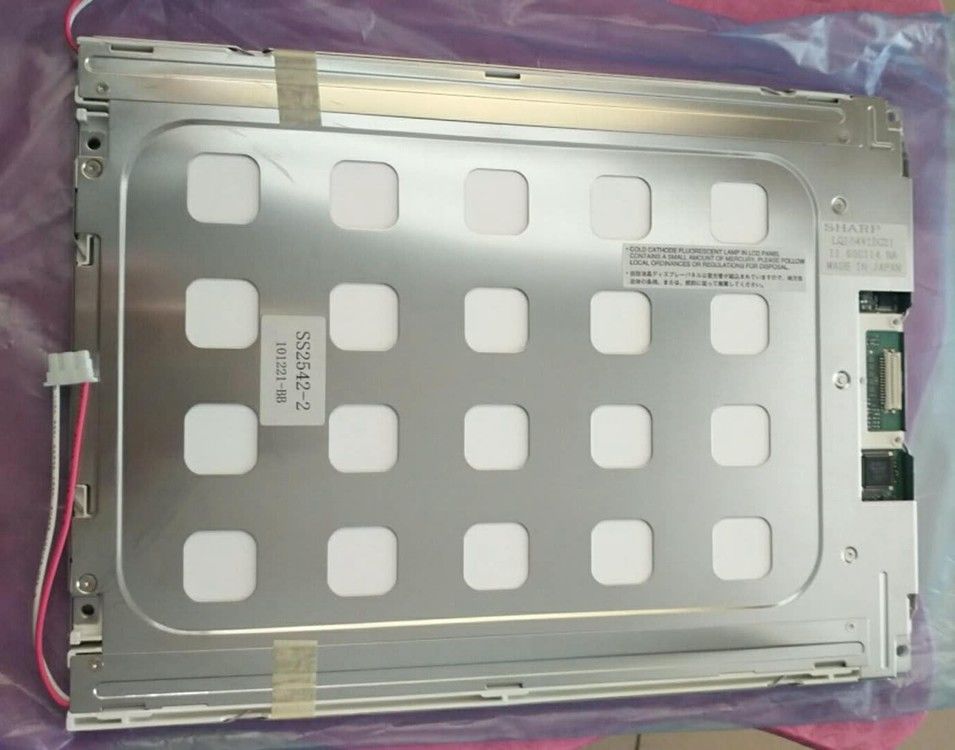

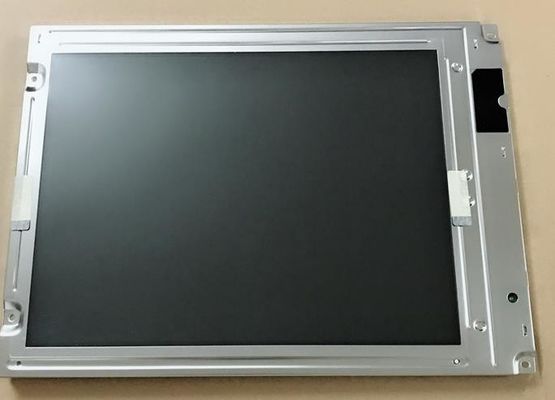

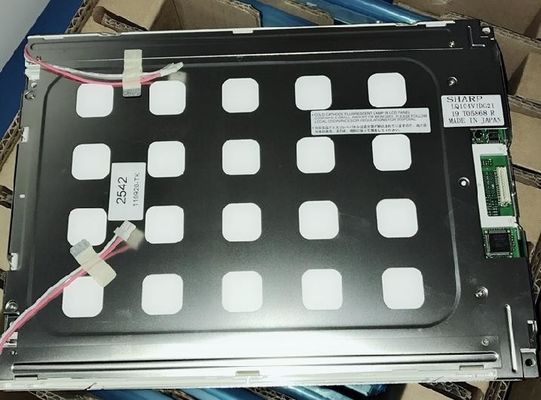

Product Details:
|
| Model Name: | LQ104S1DG51 | Manufacturer: | Sharp |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600 (SVGA) 96PPI | Arrangement: | RGB Vertical Stripe |
| Screen Type: | LCM , A-Si TFT-LCD | Screen Size: | 10.4 Inch |
| Active Area(mm): | 211.2 × 158.4 (H×V) | Signal Type: | CMOS (1 Ch, 6-bit) |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104S1LG21 LQ104S1DG61 LQ104S1DG51 LQ104S1DG34 LQ104S1DG31
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LQ104S1DG51 | a-Si TFT-LCD , LCM | - |
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
