Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ104S1LG61 |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 96PPI | Brightness: | 420 Cd/m² (Typ.) |
| Panel Size: | 10.4INCH | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins Connector |
| Lamp Type: | 2 Pcs CCFL , 50K Hours , Without Driver | Environment: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104S1LG82 LQ104S1LG81 LQ104S1LG76 LQ104S1LG75 LQ104S1LG61
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.088×0.264 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) [96PPI] | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 214.6×162.4 mm (H×V) |
| Outline Dim. | 246.5×179.4 mm (H×V) | Outline Depth | 13.7 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-3.4×4.4) on left, right bezel | |||
| Other Features : | Weight | 620g (Max.) | Surface | Antiglare, Hard coating (3H), Antireflection |
| Basic Information : | Brightness | 420 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/25 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 8.0W |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | 2 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 583V (Typ.) | Current Input | 3.0/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 35/60/80KHz (Min./Typ./Max.) | Kick-off Voltage | 1300V (Max.)(Ta=-30℃) | |||
| Consumption | 7.0W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-02(8.0)VS-1N | 8.0 mm | 2 pins | 2 pcs | BLL-2PINS-HL | |
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.) | Current Input | 300/200mA (Typ.)(3.3/5.0V) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-SE20P-HF | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C6B-070D | |

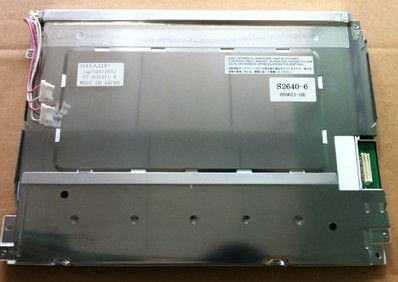

LQ104S1LG61 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.4(H) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), Antireflection, net weight of 620g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104S1LG61 can provides 420 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed.
