Product Details:
|
| Screen Size: | 10.4 Inch | Model Name: | LQ104S1LG76 |
|---|---|---|---|
| Luminance: | 1100 Cd/m² (Typ.) | Pixel Number: | 800(RGB)×600 (SVGA) 96PPI |
| Signal Type: | LVDS (1 Ch, 6-bit) , 20 Pins Connector | Backlight: | 10S3P WLED , 50K Hours , No Driver |
| Arrangement: | RGB Vertical Stripe | Max. Ratings: | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104S1LG82 LQ104S1LG81 LQ104S1LG76 LQ104S1LG75 LQ104S1LG61
| Basic Information : | Luminance | 1100 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 60/60/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.355 | Support Color | 262K (6-bit) |
| Color Temperature | 6442K | White Uniformity | 1.35/1.62 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 43% | sRGB | 60% coverage |
| Adobe RGB | 45% coverage | DCI-P3 | 45% coverage | |
| Rec.2020 | 32% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 242(W)×185(H) mm |
| Bezel Opening | 214.6(W)×162.4(H) mm | Overall Depth | 13.4 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4 pcs) on left, right bezel | |||
| Other Detail : | Mass | 520g (Max.) | Surface | - |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Signal Electrical : | Input Current | 240/360mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| FH28-20S-0.5SH | 1 pcs | 20 pins | ||||
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 10S3P | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 75/100mA (Typ./Max.) | Input Voltage | 31/34V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH28-10S-0.5SH(10) | 1 pcs | 0.5 mm | 10 pins | ||
| Backlight Driver : | No | |||||

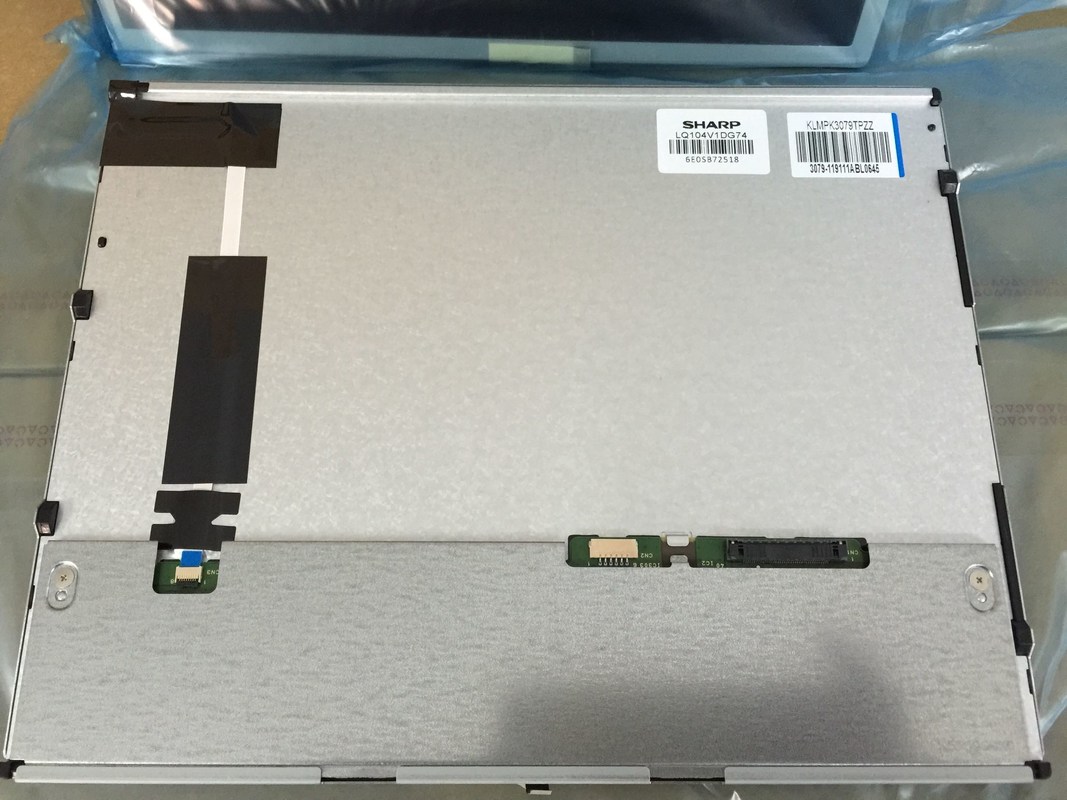

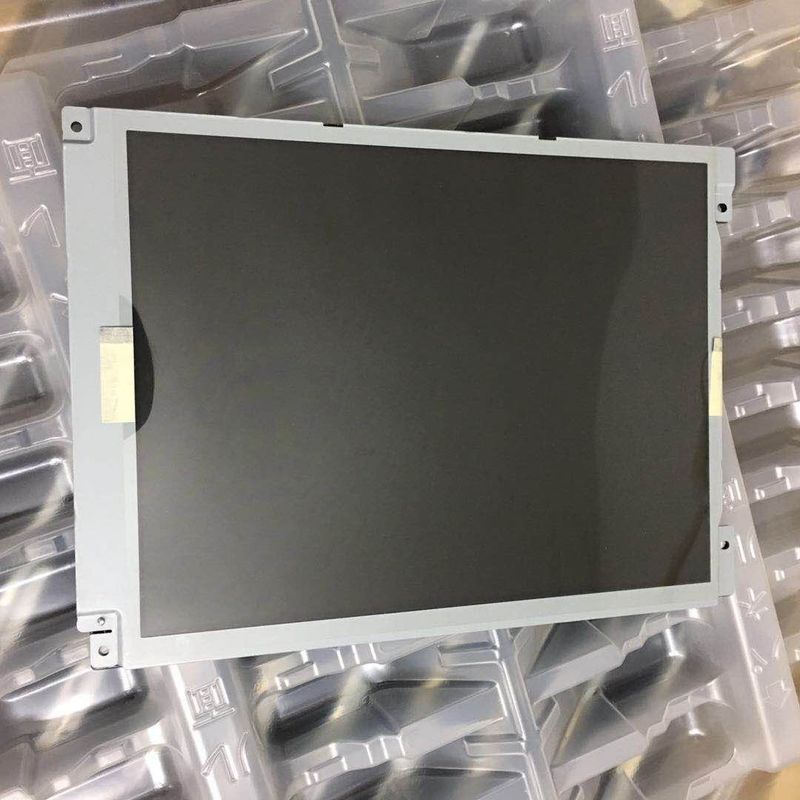

LQ104S1LG76 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 242(W)×185(H) mm, viewing area size of 214.6(W)×162.4(H) mm, net weight of 520g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104S1LG76 can provides 1100 cd/m² display brightness 600:1 transimissive contrast ratio, 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 43% (NTSC). This product adopted 10S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed.
