Product Details:
|

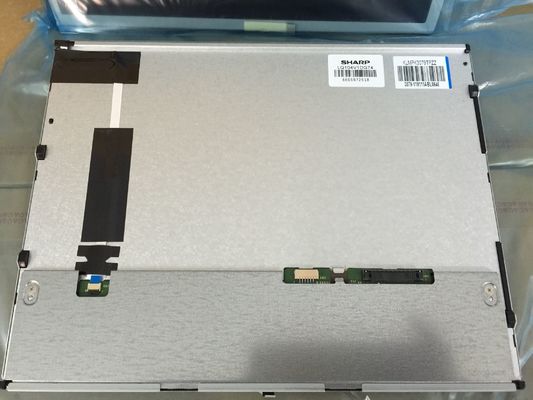

| Model: | LQ104S1LG75 | Brand: | Sharp |
|---|---|---|---|
| Diagonal Size: | 10.4 Inch | Luminance: | 1100 Cd/m² (Typ.) |
| Interface Type: | LVDS (1 Ch, 6-bit) | Light Source: | WLED |
| Configuration: | RGB Vertical Stripe | Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104S1LG82 LQ104S1LG81 LQ104S1LG76 LQ104S1LG75 LQ104S1LG61
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.088×0.264 mm | 0.264×0.264 mm [96PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | - | 242×185 mm | 13.4 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 1100 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 60/60/60/50 (Typ.)(CR≥10) | - | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 262K (6-bit) | - | |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
