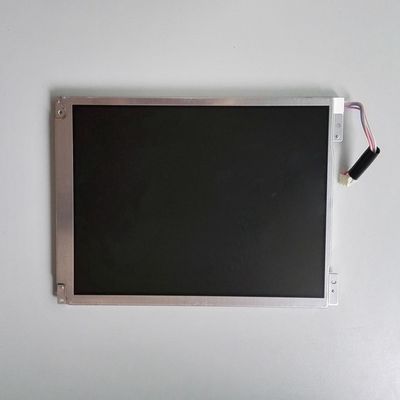

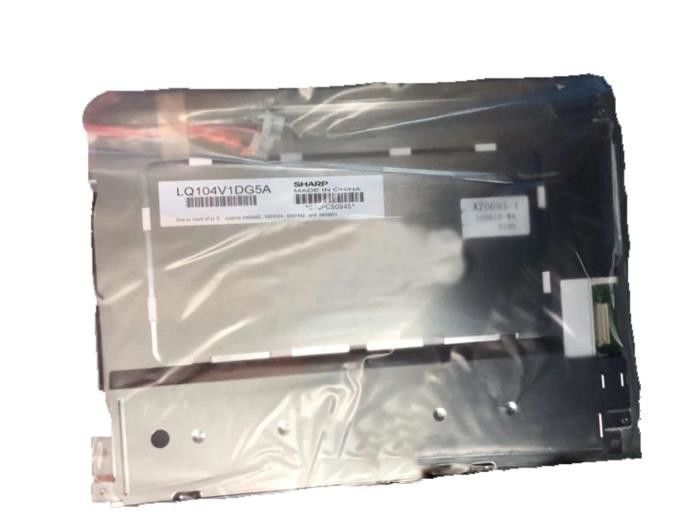

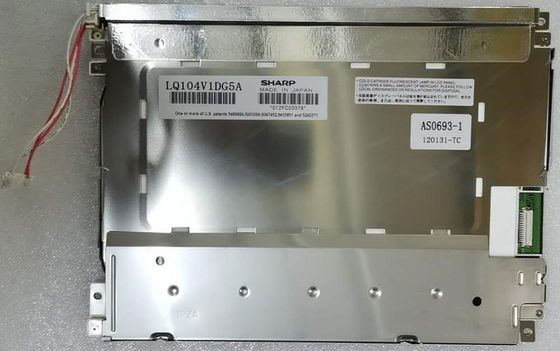

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ104V1DG5A |
|---|---|---|---|
| Pixel Number: | 640(RGB)×480 (VGA) 76PPI | Screen Size: | 10.4" |
| Luminance: | 350 Cd/m² (Typ.) | Backlight: | 2 Pcs CCFL , 50K Hours , No Driver |
| Signal Type: | Parallel RGB (1 Ch, 6-bit) , Connector 31 Pins | Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 65 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104V1DG5B LQ104V1DG5A LQ104V1DG59 LQ104V1DG52 LQ104V1DG51
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 214.6×162.4 mm | 246.5×179.4 mm | 15.5 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 620g (Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/50/60 (Typ.)(CR≥10) | 6 o'clock | 10/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| Luminance Variation : | 1.45 (Max.)(5 points) | ||
| Power Consumption : | 6.4W |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 210/140mA (Typ.)(3.3V/5.0V) | 3.3/5.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9MA-31P-1V(32) | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010K | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Bottom side) | Straight | 2 pcs | 50K(Typ.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.5/6.0/7.0mA (Min./Typ./Max.) | 466.7V (Typ.) | 5.6W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1000/1450V (Max.)(Ta=+25/0℃) | 35/60/70KHz (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| Connector | No | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-02(8.0)VS-1N | 2 pcs | 8.0 mm | 2 pins | BLL-2PINS-HL | |
LQ104V1DG5A supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.4(H)×15.5(D) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 620g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104V1DG5A can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed.
