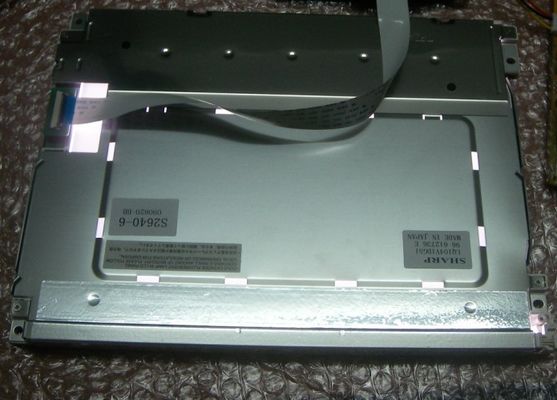

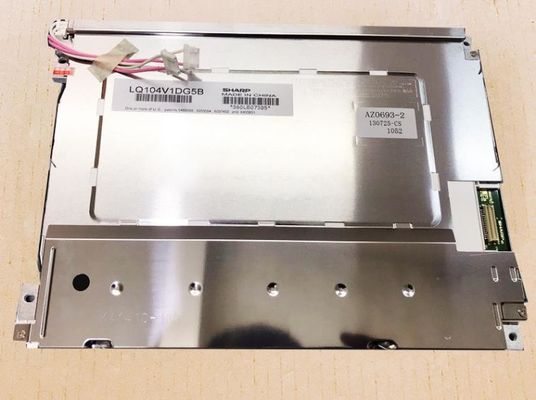

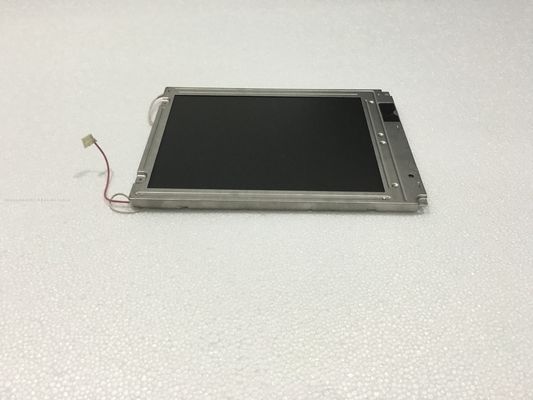

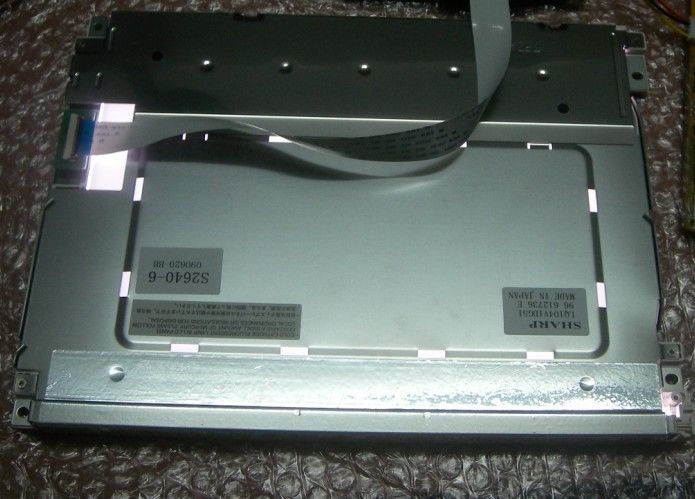

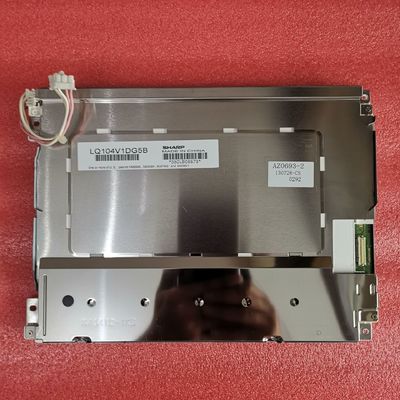

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ104V1DG5B |
|---|---|---|---|
| Lamp Type: | 2 Pcs CCFL , 50K Hours , Without Driver | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector |
| Panel Size: | 10.4" | Brightness: | 350 Cd/m² (Typ.) |
| Resolution: | 640(RGB)×480, VGA, 76PPI | Environment: | Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ104 Series LQ104V1DG5B LQ104V1DG5A LQ104V1DG59 LQ104V1DG52 LQ104V1DG51
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.110×0.330 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.330×0.330 (H×V) [76PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 214.6(H) × 162.4(V) |
| Outline Dim.(mm) | 246.5(H) × 179.4(V) | Depth(mm) | 15.5 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
| Other Spec : | Weight | 620g (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 350:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 10/25 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.45 (Max.)(5 points) |
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.) | Current Supply | 200/130mA (Typ.)(3.3V/5.0V) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9MA-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010K | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | 2 pcs | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 467V (Typ.) | Current Supply | 3.0/6.5/7.0mA (Min./Typ./Max.) | ||
| Frequency | 35/60/70KHz (Min./Typ./Max.) | Startup Voltage | 1000/1450V (Max.)(Ta=+25/0℃) | |||
| Consumption | 5.6W (Typ.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : |
No |
|||||
LQ104V1DG5B supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.4(H)×15.5(D) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 620g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104V1DG5B can provides 350 cd/m² display brightness 350:1 transimissive contrast ratio, 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed.
