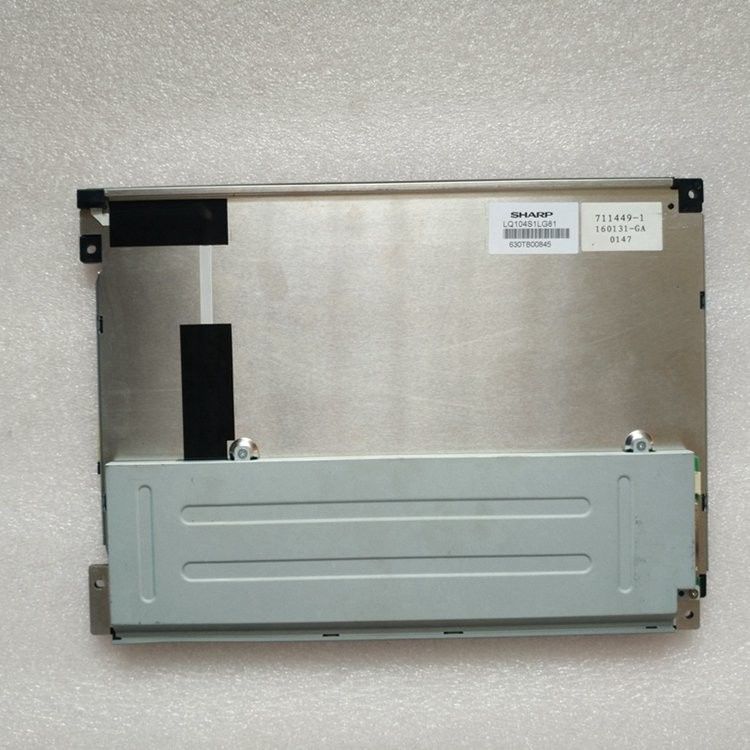

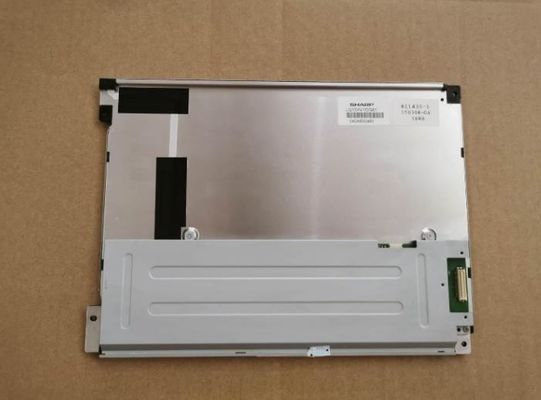

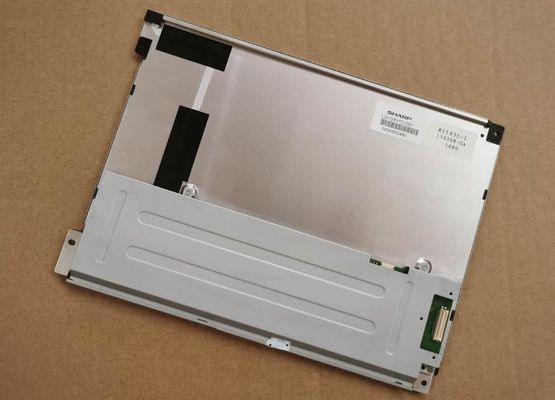

Product Details:
|
| Panel Model: | LQ104V1DG81 | Panel Brand: | Sharp |
|---|---|---|---|
| Signal Interface: | CMOS (1 Ch, 6-bit) , 31 Pins Connector | Lamp Type: | WLED , 50K Hours , With LED Driver |
| Panel Size: | 10.4" | Resolution: | 640(RGB)×480, VGA, 76PPI |
| Brightness: | 450 Cd/m² (Typ.) | Environment: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| High Light: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ104 Series LQ104V1DW02K LQ104V1DW02 LQ104V1DW01 LQ104V1DG83 LQ104V1DG81
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LQ104V1DG81 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 80 °C | -30 ~ 80 °C | - |
| Screen Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 214.6×162.4 mm | 246.5×179.3 mm | 13.0 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 500g | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 80/80/65/80 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | - | - | Replaceable | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHLS-TF | 1 pcs | 6 pins | 1.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0±1.2V | 400/500mA (Typ./Max.) | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 230/300mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9MA-31P-1V(32) | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010F | |
LQ104V1DG81 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.3(H)×13(D) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 500g. As a TN, Normally White, Transmissive LCM product, LQ104V1DG81 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver.
