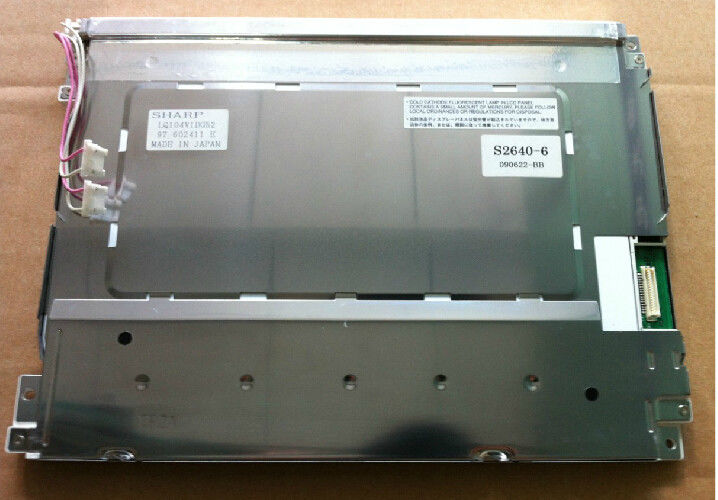

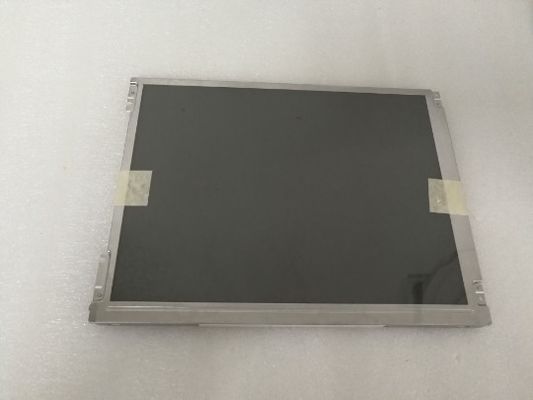

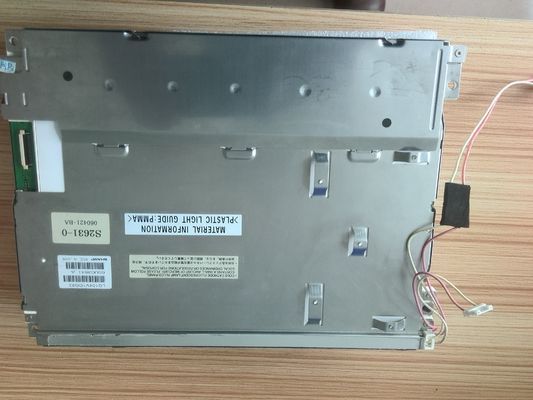

Product Details:
|
| Brand: | Sharp | Model: | LQ104V1DG83 |
|---|---|---|---|
| Luminance: | 350 Cd/m² (Typ.) | Diagonal Size: | 10.4" |
| Light Source: | CCFL [2 Pcs] , 50K Hours , With Inverter | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 32 Pins Connector |
| Pixel Format: | 640(RGB)×480 [VGA] 76PPI | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ104 Series LQ104V1DW02K LQ104V1DW02 LQ104V1DW01 LQ104V1DG83 LQ104V1DG81
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 214.6×162.4 mm | 246.5×179.4 mm | 34.7 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 700g (Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/40/70 (Typ.)(CR≥10) | 6 o'clock | 10/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 32767K | 262K (6-bit) | X:0.131; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 94% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.45 (Max.)(5 points) | ||
| Power Consumption : | 8.3W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 180/130mA (Typ.)(ICC) | 3.3/5.0V (Typ.)(VCC) | - | ||||
| Voltage for Display Signals : | GND≤VIL≤0.8V; 2.3≤VIH≤3.3V(VCC≥3.3V); 2.3≤VIH≤VCC(VCC≤3.3V) | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | IL-FPR-32S-VF | 1 pcs | 0.5 mm | 32 pins | DRGB-32P1C6B-040A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | Straight | 2 pcs | 50K(Min.) | - | |
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | With Inverter | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | S6B-ZR-SM3A-TF | 1 pcs | 1.5 mm | 6 pins | BDL-6PINS-VVVGGG | |
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 630/700mA (Typ./Max.) | 12.0V (Typ.) | - | ||||
LQ104V1DG83 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.4(H)×34.7(D) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 700g (Max.). As a TN, Normally White, Transmissive LCM product, LQ104V1DG83 can provides 350 cd/m² display brightness 300:1 transimissive contrast ratio, 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, With Inverter.
