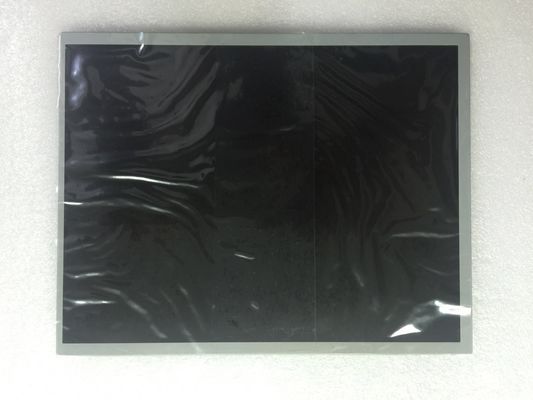

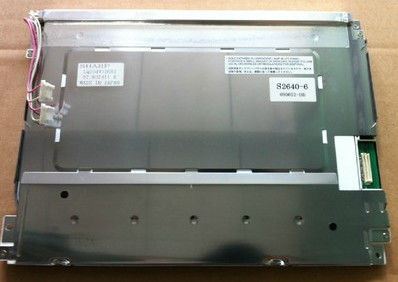

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ104V1DW02 |
|---|---|---|---|
| Luminance: | 380 (Typ.)(cd/m²) | Screen Size: | 10.4 Inch |
| Pixel Number: | 640(RGB)×480 (VGA) 76PPI | Max. Ratings: | Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 70 °C |
| Backlight: | 2 Pcs CCFL , 50K Hours , No Driver | Signal Type: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector |
| High Light: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ104 Series LQ104V1DW02K LQ104V1DW02 LQ104V1DW01 LQ104V1DG83 LQ104V1DG81
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | - | 246.5×179.4 mm | 15.5 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 620g (Max.) | Antiglare, Hard coating (3H), Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 380 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 450:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 12/13 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 185/145mA (Typ.)(ICC) | 3.3/5.0V (Typ.)(VCC) | - | ||||
| Voltage for Display Signals : | VIL≤0.3VCC; 0.7VCC≤VIH | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9MA-31P-1V(32) | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010K | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | Straight | 2 pcs | 50K(Min.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.5/6.0/7.0mA (Min./Typ./Max.) | 470±50V | 5.6W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 740/790V (Max.)(Ta=+25/0℃) | 35/60/70KHz (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-02(8.0)VS-1N | 2 pcs | 8.0 mm | 2 pins | BLL-2PINS-HL | |
LQ104V1DW02 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.4(H)×15.5(D) mm, with surface treament of Antiglare, Hard coating (3H), Antireflection, net weight of 620g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ104V1DW02 can provides 380 cd/m² display brightness 450:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/13 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed.
