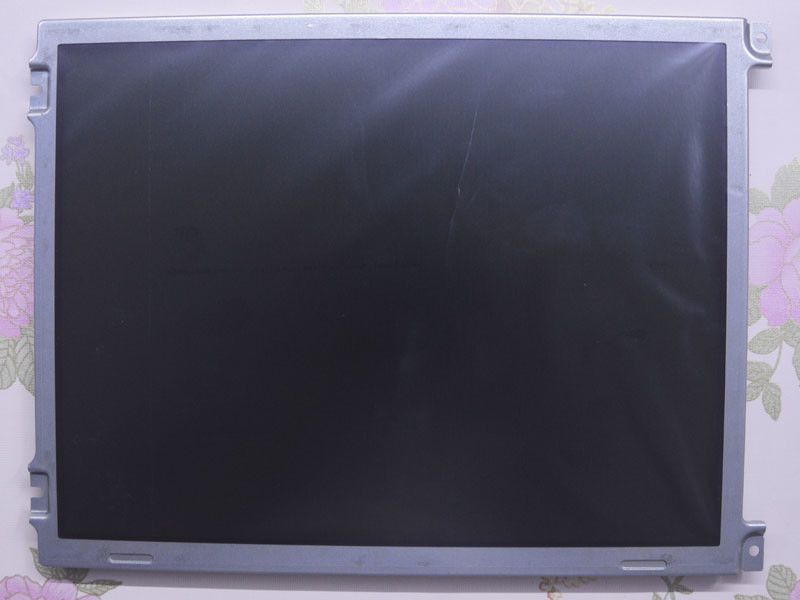

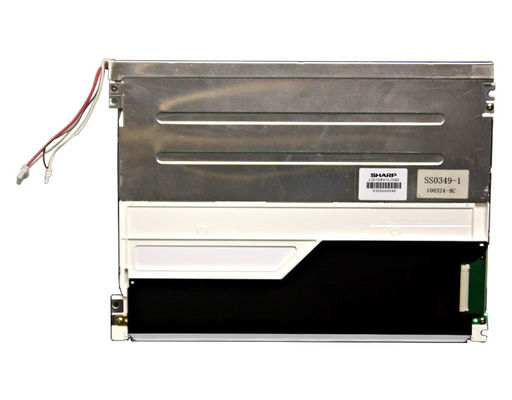

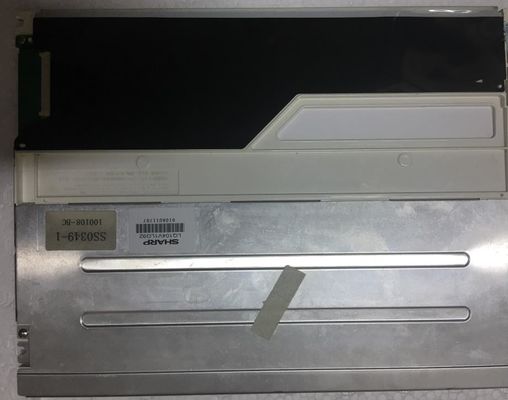

Product Details:
|
| Screen Size: | 10.4 Inch | Model Name: | LQ104V1LG92 |
|---|---|---|---|
| Pixel Number: | 640(RGB)×480 (VGA) 76PPI | Luminance: | 330cd/m² |
| Signal Type: | LVDS (1 Ch, 8-bit) | Backlight: | 2 Pcs CCFL |
| Arrangement: | RGB Vertical Stripe | Screen Type: | LCM , A-Si TFT-LCD |
| High Light: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ104 Series LQ104V7DS01 LQ104V1LG92 LQ104V1LG81 LQ104V1LG61
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | - | 240×179.2 mm | 10.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 520g (Max.) | - | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 330 cd/m² (Typ.) | TN, Normally White, Transmissive | - | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| - | - | - | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 16.7M (6-bit + Hi-FRC) | - |
| Power Consumption : | 6.2W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
