Product Details:
|
| Model Name: | LQ104V7DS01 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Manufacturer: | Sharp | Luminance: | 250cd/m² |
| Signal Type: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector | Backlight: | 2 Pcs CCFL , 50K Hours , No Driver |
| Pixel Number: | 640(RGB)×480 (VGA) 76PPI | Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 65 °C |
| High Light: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ104 Series LQ104V7DS01 LQ104V1LG92 LQ104V1LG81 LQ104V1LG61
| Panel Size : | 10.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 211.2×158.4 mm | 215.2×162.4 mm | 245×195 mm | 11.4±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 700g (Typ.) | Antiglare, Hard coating, Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transflective | 250:1 (Typ.) (Transmissive) 4.5:1 (Typ.) (Reflective) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/45/45 (Typ.)(CR≥5) | 6 o'clock | 20/40 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6671K | 262K (6-bit) | X:0.304; Y:0.361 | |
| Luminance Variation : | 1.45 (Max.)(5 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | 3.2% (Typ.) | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| TBD/280mA (Typ.)(ICC) | 3.3/5.0V (Typ.)(VCC) | - | ||||
| Voltage for Display Signals : | VIL≤0.3VCC; 0.7VCC≤VIH | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF9MA-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010K | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | Straight | 2 pcs | 50K(Min.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 2.0/6.0/6.5mA (Min./Typ./Max.) | 500V (Typ.) | 6.0W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 950/1250V (Max.)(Ta=+25/0℃) | 20/35/60KHz (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |

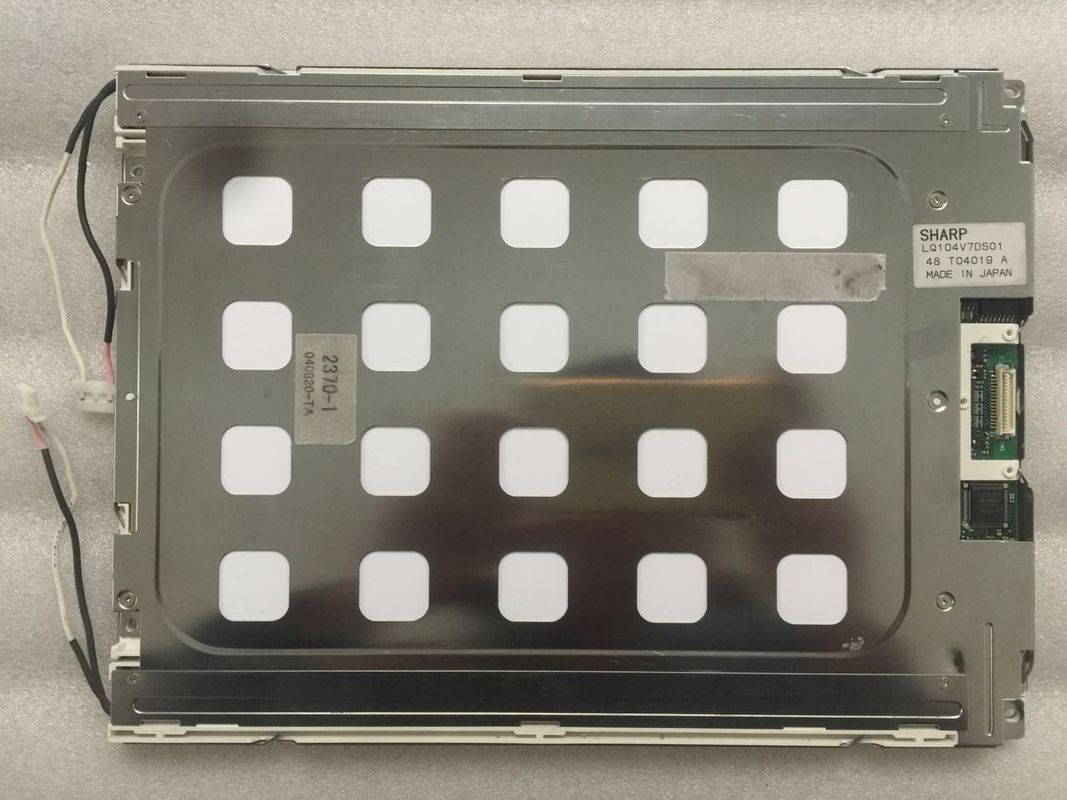

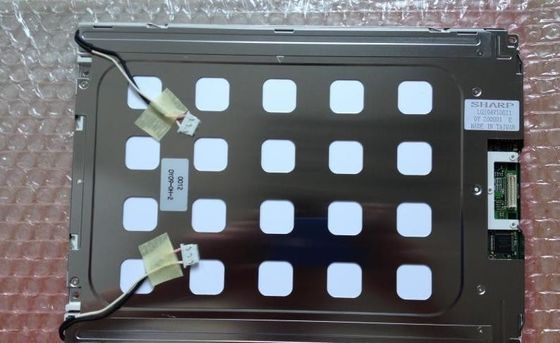

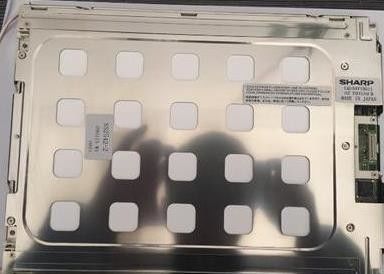

LQ104V7DS01 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 245(W)×195(H)×11.9(D) mm, viewing area size of 215.2(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating, Antireflection, net weight of 700g (Typ.). As a TN, Normally White, Transflective LCM product, LQ104V7DS01 can provides 250 cd/m² display brightness 250:1 transimissive contrast ratio, 4.5:1 (Typ.) reflective contrast ratio, 45/45/45/45 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/40 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed.
