Product Details:
|

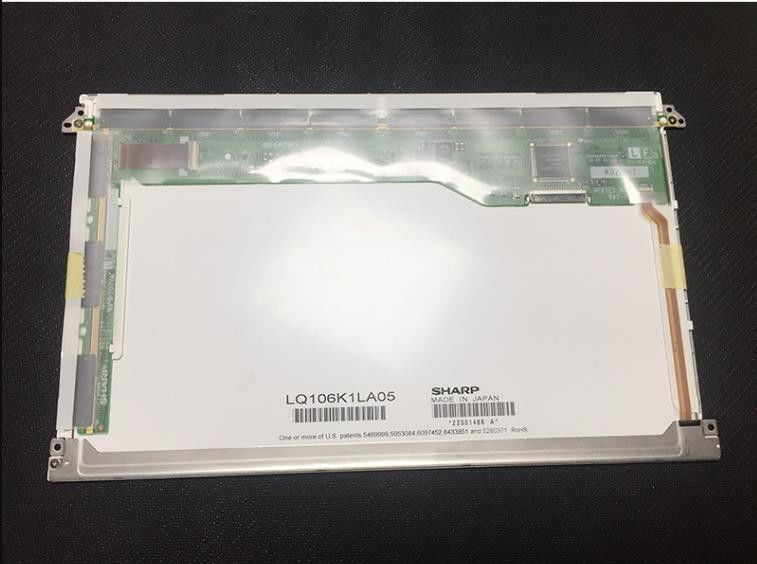

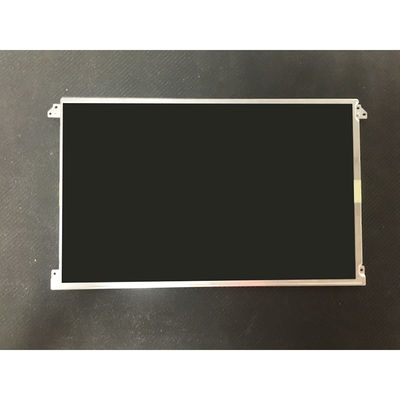

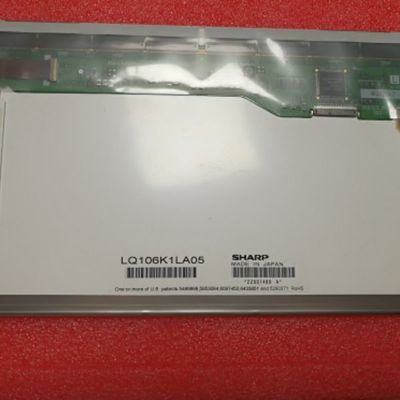

| Model: | LQ106K1LA05 | Brand: | Sharp |
|---|---|---|---|
| Diagonal Size: | 10.6 Inch | Pixel Format: | 1280(RGB)×768 [WXGA] 141PPI |
| Luminance: | 280 Cd/m² (Typ.) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Interface Type: | LVDS (1 Ch, 6-bit) , 20 Pins Connector | Light Source: | WLED [9S5P] , 10K Hours , W/O Driver |
| Highlight: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ106 Series LQ106K1LA05 LQ106K1LA02
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 280 (Typ.) | 70/70/50/60 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 350 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| White Variation : | 1.45 (Max.)(5 points) | ||
| Panel Size : | 10.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×768 [WXGA] | RGB Vertical Stripe | 0.180×0.180 [141PPI] | 0.060×0.180 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 230.4(H) × 138.24(V) | 235.2(H) × 143.0(V) | 257.8(H) × 152(V) | 5.0 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Mounting : | Face mounting holes (6 pcs) on left, right slugs | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 175g (Typ.) | - | Glare (Haze 0%), Hard coating (2H), Antireflection | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 9S5P | 5 strings | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 28.8/31.5V (Typ./Max.) | 2.0/17.0/17.0mA (Min./Typ./Max.) | 2.45W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 310mA (Typ.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (1 ch, 6-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF19L-20P-1H | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C6B-110A | |
