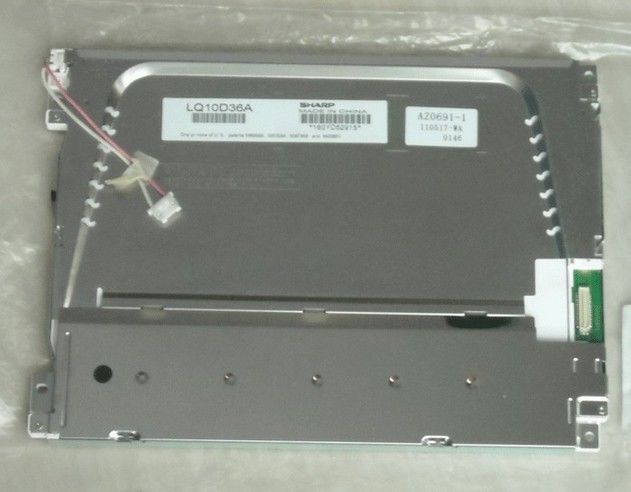

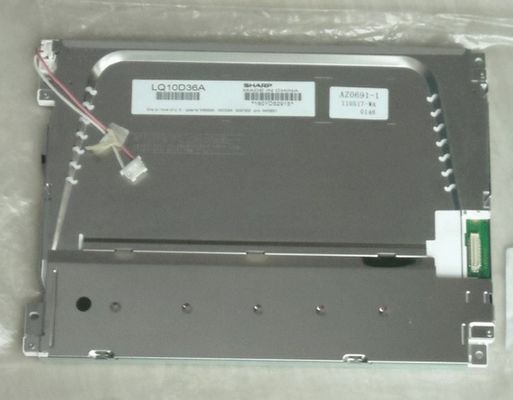

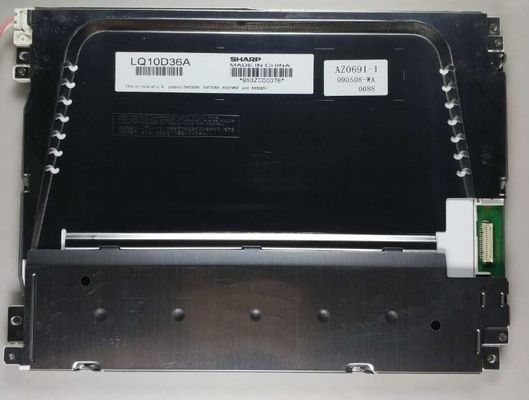

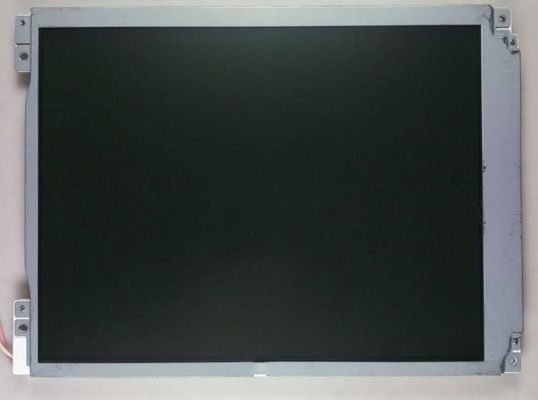

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ10D36A |
|---|---|---|---|
| Brightness: | 200cd/m² | Panel Size: | 10.4INCH |
| Lamp Type: | 1 Pcs CCFL , 50K Hours , Without Driver | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector |
| Resolution: | 640(RGB)×480, VGA, 76PPI | Environment: | Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C |
| High Light: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ10 Series LQ10D421 LQ10D42 LQ10D41 LQ10D36A
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 70/70/50/60 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| White Variation : | 1.45 (Max.)(5 points) | ||
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.330×0.330 [76PPI] | 0.110×0.330 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 211.2(H) × 158.4(V) | 214.6(H) × 162.4(V) | 246.5(H) × 179.4(V) | 11.0 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 520g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 1 pcs | Straight | 50K(Typ.) | Replaceable | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 500V (Typ.) | 2.0/6.0/6.5mA (Min./Typ./Max.) | 3.0W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 20/35/60KHz (Min./Typ./Max.) | 950/1400/1500V (Max.)(Ta=+25/0/-10.0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-02(8.0)VS-1N | 8.0 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 210/140mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | VIL≤0.8V; 2.1V≤VIH | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF9MA-31P-1V(32) | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010K | |
LQ10D36A supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 246.5(W)×179.4(H)×11(D) mm, viewing area size of 214.6(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 520g (Max.). As a TN, Normally White, Transmissive LCM product, LQ10D36A can provides 200 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed. LQ10D36A utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 3.3/5.0V (Typ.)(VCC).
