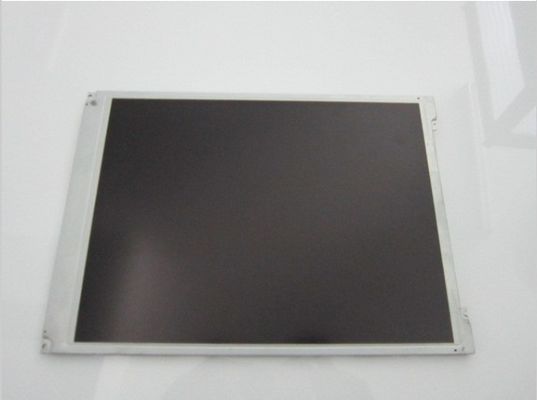

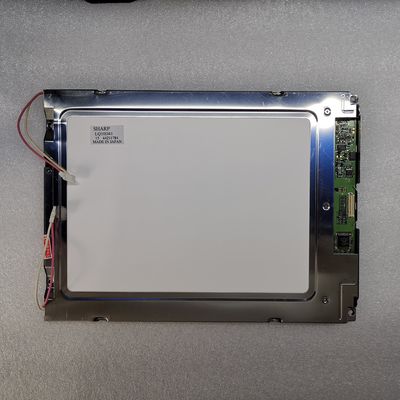

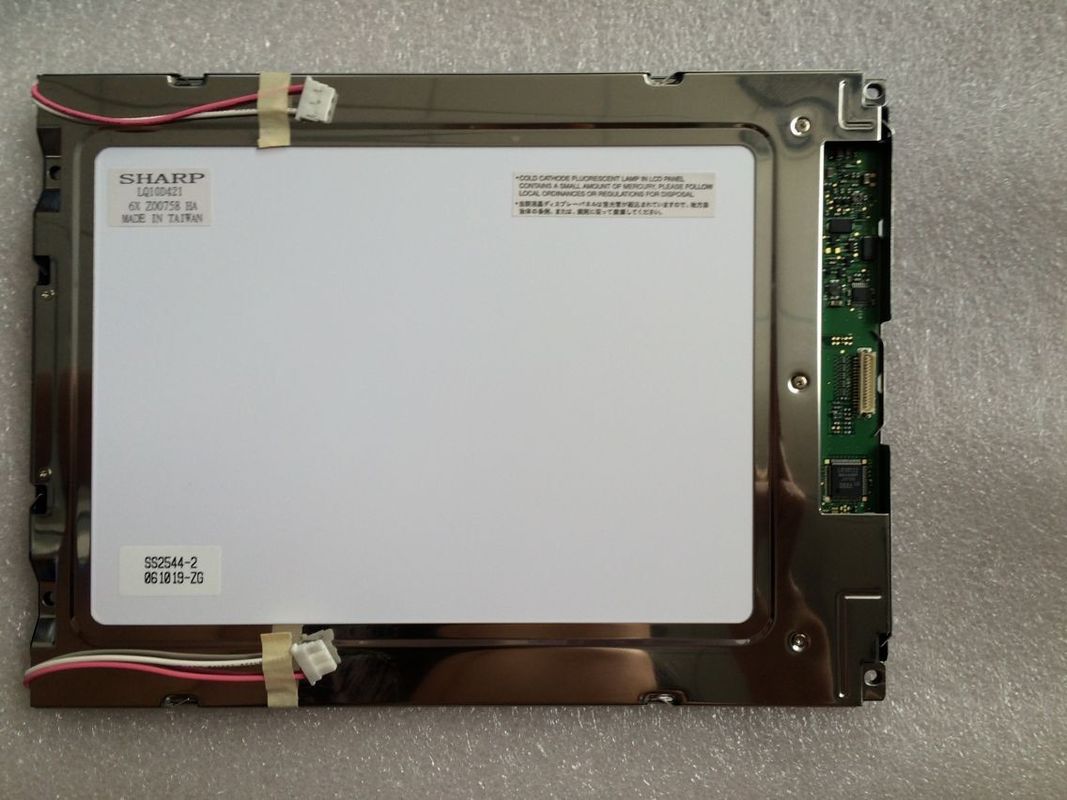

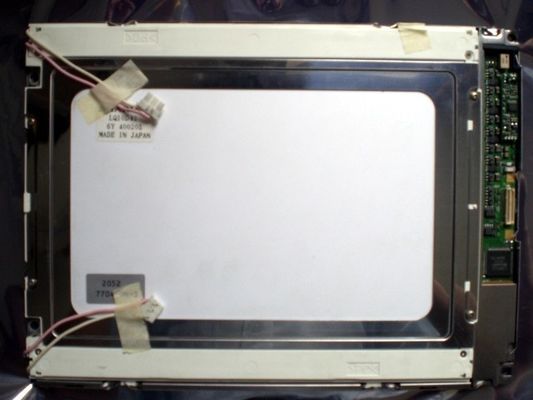

Product Details:
|
| Model Name: | LQ10D42 | Screen Size: | 10.4" |
|---|---|---|---|
| Pixel Number: | 640(RGB)×480 (VGA) 76PPI | Luminance: | 300 (Typ.)(cd/m²) |
| Backlight: | 2 Pcs CCFL , 25K Hours , No Driver | Signal Type: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector |
| Viewing Angle: | 60/60/40/50 (Min.) | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| High Light: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ10 Series LQ10D421 LQ10D42 LQ10D41 LQ10D36A
| Screen Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 216.2×163.4 mm | 265×195 mm | 11.0±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| - | - | Antiglare (Haze 28%), Hard coating (2H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 100:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 60/60/40/50 (Min.)(CR＞5) | 30/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| White Uniformity : | 1.45 (Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 25K(Typ.) | 2 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 500V (Typ.) | 2.0/6.0/6.5mA (Min./Typ./Max.) | 6.0W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 20/35/60KHz (Min./Typ./Max.) | 950/1400V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.)(VCC) | - | - | ||||
| Voltage for Display Signals : | VIL≤0.3VCC; 0.7VCC≤VIH | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9BA-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010K | |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
