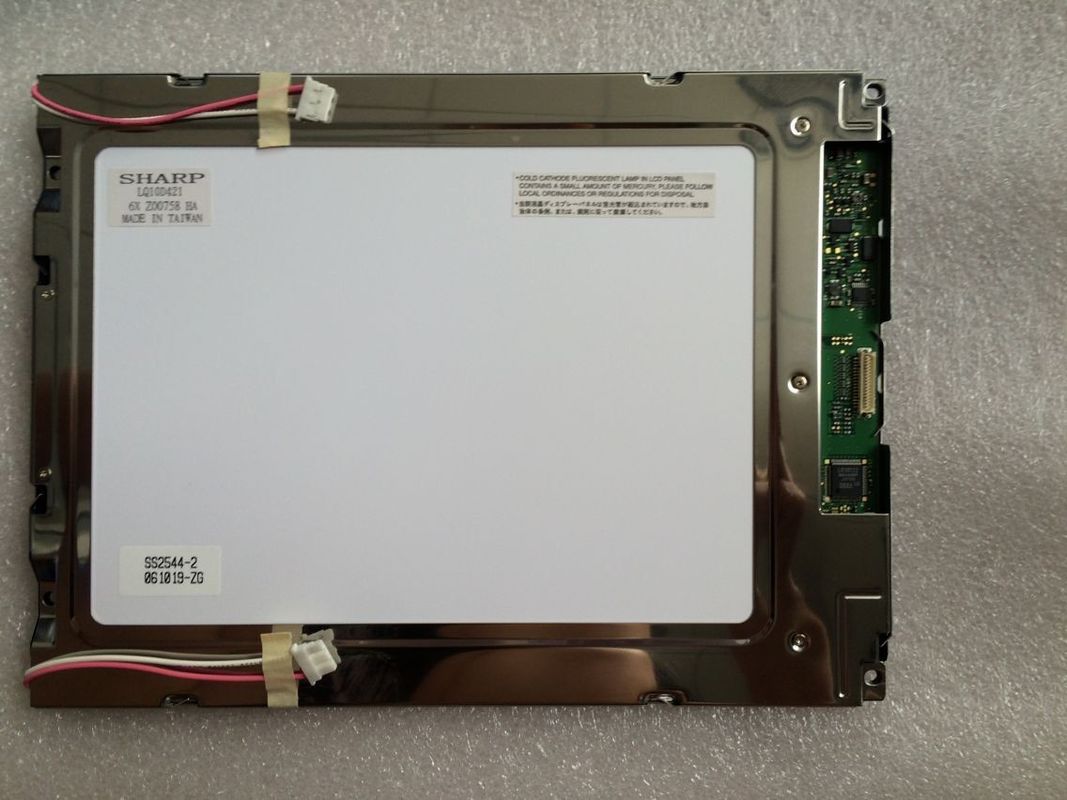

Product Details:
|
| Panel Model: | LQ10D421 | Panel Brand: | Sharp |
|---|---|---|---|
| Panel Size: | 10.4" | Brightness: | 300 Cd/m² (Typ.) |
| Resolution: | 640(RGB)×480, VGA, 76PPI | Environment: | Operating Temp.: 0 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C |
| Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector | Lamp Type: | 2 Pcs CCFL , 50K Hours , Without Driver |
| High Light: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ10 Series LQ10D421 LQ10D42 LQ10D41 LQ10D36A
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 20/40 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6926K | White Uniformity | 1.45 (Max.)(5 points) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 265(W)×195(H) mm |
| Bezel Opening | 214.6(W)×162.4(H) mm | Overall Depth | 11.5 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |||
| Other Detail : | Mass | 620g (Max.) | Surface | Clear, Hard coating (3H), Antireflection |
| Signal Electrical : | Input Current | 180/150mA (Typ.)(3.3/5.0V) | Input Voltage | 3.3/5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | VIL≤0.3VCC; 0.7VCC≤VIH | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9BA-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010K | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (LQ0DDB5369) | Amount | 2 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 2.0/6.0/6.5mA (Min./Typ./Max.) | Input Voltage | 466.7V (Typ.) | ||
| Frequency | 20/35/60KHz (Min./Typ./Max.) | Turn-on Voltage | 950/1500V (Max.)(Ta=+25/0℃) | |||
| Consumption | 5.6W (Typ.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
