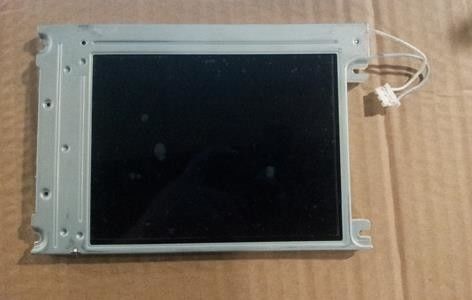

Product Details:
|
| Brand: | Sharp | Model: | LQ10PX21 |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768 [XGA] 128PPI | Diagonal Size: | 10.0 Inch |
| Light Source: | No B/L | Interface Type: | Parallel RGB (2 Ch, 6-bit) 80 Pins Connector |
| Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C | Viewing Angle: | 35/35/30/10 (Min.) |
| Highlight: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ10 Series LQ10PX22 LQ10PX21
| Screen Size : | 10.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.066×0.198 mm | 0.198×0.198 mm [128PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 202.752×152.064 mm | 205.75×155.06 mm | 265×195 mm | 8.0 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 430±20g | - | Clear, Hard coating (2H) | ||
| Holes & Brackets : | Face mounting holes (4 pcs) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| - | TN, Normally White, Transmissive | 100:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 35/35/30/10 (Min.)(CR≥10) | 30/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| Transmissivity : | 5.6% (Typ.)(with Polarizer) | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.)(VCC) | 300mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | VIL≤0.6V; 2.6V≤VIH | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (2 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | KX14-80K2D | 1 pcs | 80 pins | 0.8 mm | DRGB-80P2C6B-050A | |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
