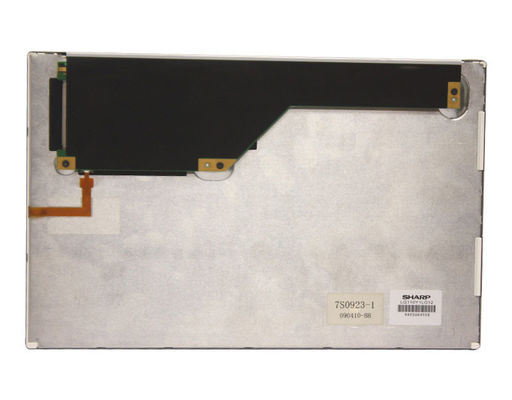

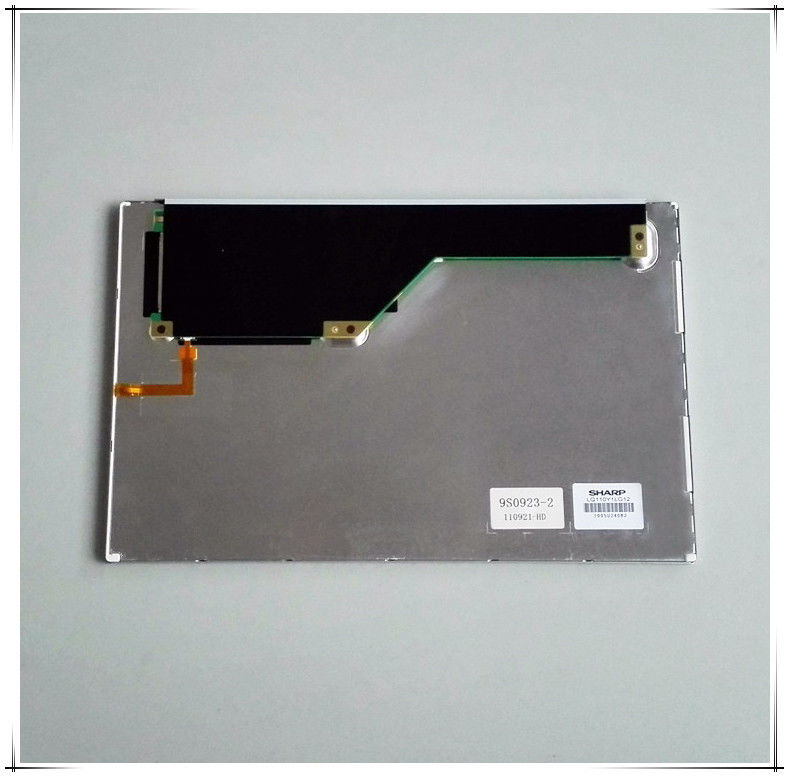

LQ110Y1LG12 11Inch 85PPI 800×480 RGB Sharp TFT LCD Display

LQ110 Series   LQ110Y3DG01  LQ110Y1LG12

LQ110Y1LG12 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 238.8(W)×143.28(H) mm, outline size of 257(W)×164.5(H)×9.9(D) mm, viewing area size of 241.2(W)×146.9(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 420g (Max.). As a TN, Normally White, Transmissive LCM product, LQ110Y1LG12 can provides 330 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 23.0 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. LQ110Y1LG12 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
