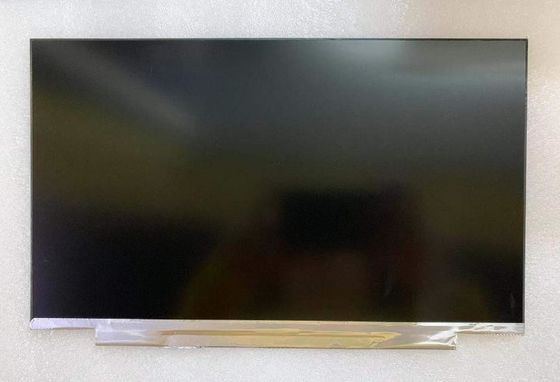

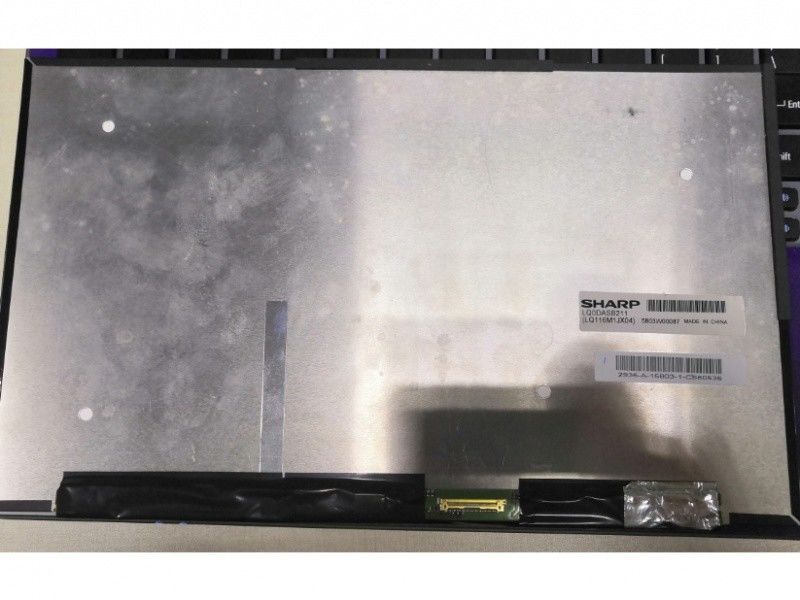

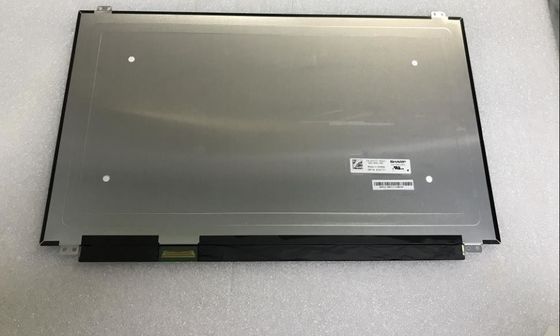

Product Details:
|
| Panel Size: | 11.6Inch | Panel Model: | LQ116K1JX01 |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA, 135PPI | Brightness: | 600 Cd/m² (Typ.) |
| Signal Interface: | EDP (1 Lane) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins Connector | Lamp Type: | WLED , 15K Hours , With LED Driver |
| Viewing Angle: | 80/80/80/80 (Typ.) | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| Highlight: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ116 Series LQ116T1JW03 LQ116M1JX07 LQ116M1JX06 LQ116M1JW02 LQ116K1JX01
| Basic Information : | Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | VA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.302; Wy:0.312 | Support Color | 262K (6-bit) |
| Color Temperature | 7351K | White Uniformity | 1.40/1.82 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 44% | sRGB | 62% coverage |
| Adobe RGB | 46% coverage | DCI-P3 | 46% coverage | |
| Rec.2020 | 33% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1366(RGB)×768 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0625×0.1875 mm | Pixel Pitch(W×H) | 0.1875×0.1875 mm [135PPI] | |
| Physical Size : | Active Viewing | 256.125(W)×144(H) mm | Overall Dim. | 268(W)×158.5(H) mm |
| Bezel Opening | - | Overall Depth | 2.95/5.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 195/210g (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 5.13W (Typ.) |
| Signal Electrical : | Input Current | 220/424mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.73/1.4W (Typ./Max.) | Signal Interface | eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-030E-12 | 1 pcs | 0.5 mm | 30 pins | EDP-30P1L-030A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 367/417mA (Typ./Max.) | Input Voltage | 5.5/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 4.4/5.0W (Typ./Max.) | |||||
LQ116K1JX01 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.125(W)×144(H) mm, outline size of 268(W)×158.5(H)×5.3(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 195/210g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a VA, Normally Black, Transmissive LCM product, LQ116K1JX01 can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 44% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ116K1JX01 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
