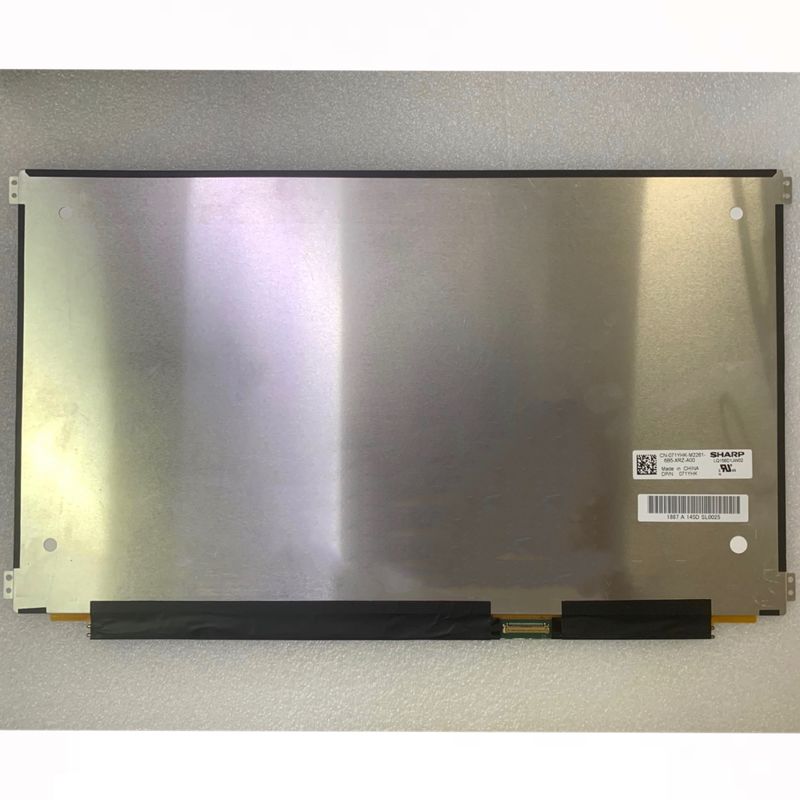

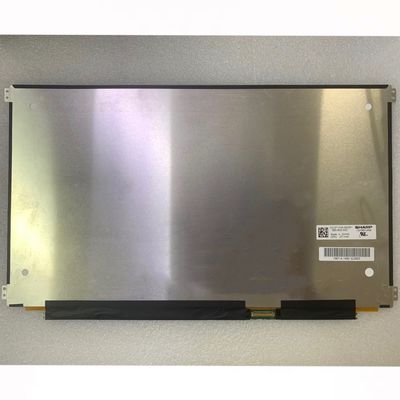

Product Details:
|
| Model: | LQ116M1JX06 | Luminance: | 300 Cd/m² (Typ.) |
|---|---|---|---|
| Diagonal Size: | 11.6 Inch | Pixel Format: | 1920(RGB)×1080 [FHD] 190PPI |
| Light Source: | WLED , 10K Hours , With LED Driver | Interface Type: | EDP (2 Lanes) , EDP1.3 , HBR1 (2.7G/lane) , 30 Pins Connector |
| Viewing Angle: | 89/89/89/89 (Typ.) | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ116 Series LQ116T1JW03 LQ116M1JX07 LQ116M1JX06 LQ116M1JW02 LQ116K1JX01
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0445×0.1335 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1335×0.1335 (H×V) [190PPI] | |
| Mechanical Size : | Active Area(mm) | 256.32(H) × 144.18(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 263.4(H) × 159(V) | Depth(mm) | 2.35±0.2 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 155/166g (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 22 (Typ.)(G to G); 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 227/375mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.75/1.24W (Typ./Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-76 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020AA | |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 10K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 227/251mA (Typ./Max.) | ||
| Consumption | 2.72/3.0W (Typ./Max.) | |||||

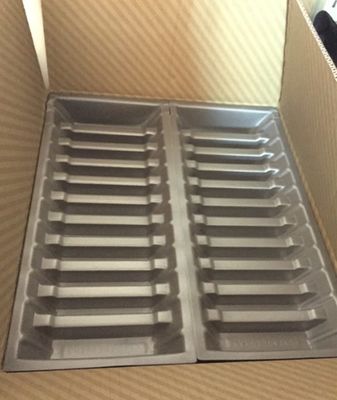

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 40 pcs / box | 11 Kgs | 554×360×281 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
