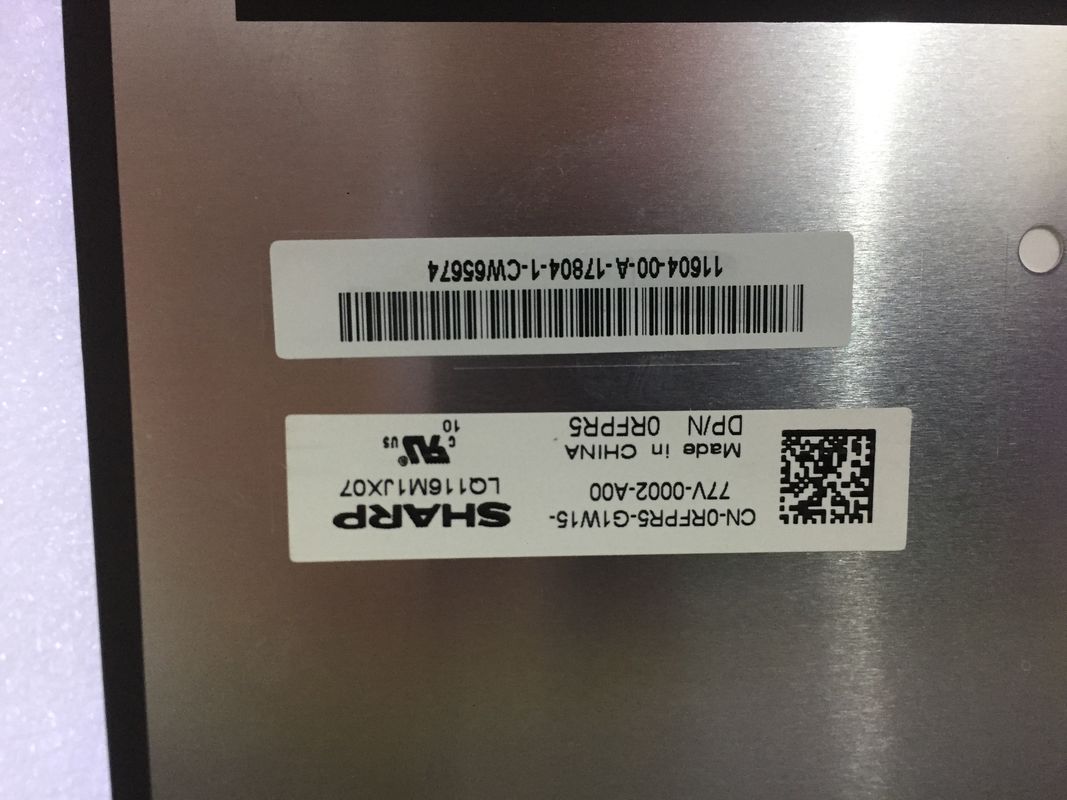

Product Details:
|
| Model Name: | LQ116M1JX07 | Screen Size: | 11.6 Inch |
|---|---|---|---|
| Viewing Angle: | 89/89/89/89 (Typ.) | Luminance: | 600 Cd/m² (Typ.) |
| Backlight: | WLED , 15K Hours , With LED Driver | Signal Type: | EDP (2 Lanes) , EDP1.3 , HBR1 (2.7G/lane) , 30 Pins Connector |
| Arrangement: | RGB Vertical Stripe | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Highlight: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ116 Series LQ116T1JW03 LQ116M1JX07 LQ116M1JX06 LQ116M1JW02 LQ116K1JX01

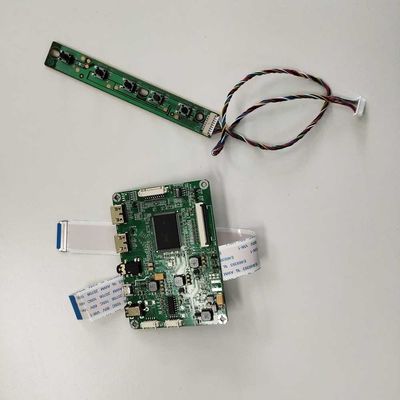

| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0445×0.1335 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1335×0.1335 (H×V) [190PPI] | |
| Mechanical Size : | Active Area(mm) | 256.32(H) × 144.18(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 268(H) × 158.5(V) | Depth(mm) | 2.3/5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 157/172g (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 600 (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 22 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.53 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 4.51W (Typ.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 242/333mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.8/1.1W (Typ./Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |

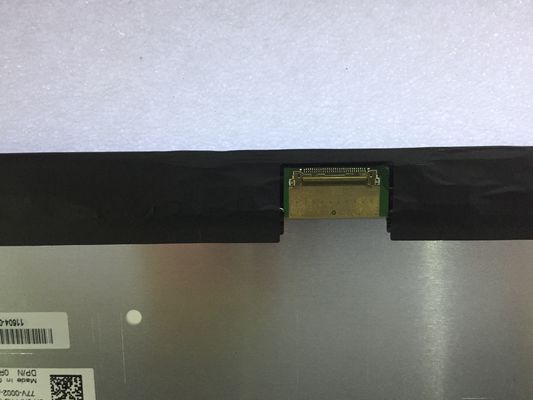

| I-PEX | 20455-030E-76 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 308/333A (Typ./Max.) | ||
| Consumption | 3.7/4.0W (Typ./Max.) | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 30 pcs / box | 9.5 Kgs | 544×434×210 mm (L×W×H) |
LQ116M1JX07 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.32(W)×144.18(H) mm, outline size of 268(W)×158.5(H)×5(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 157/172g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LQ116M1JX07 can provides 600 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 22 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver.
