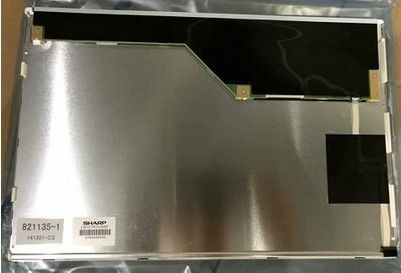

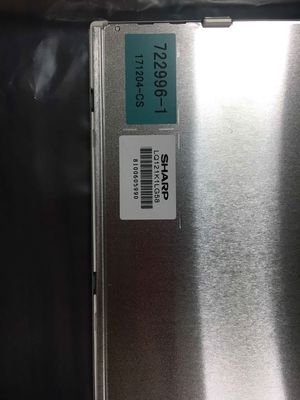

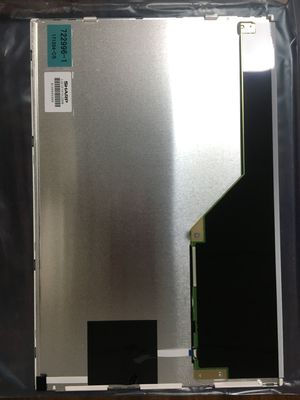

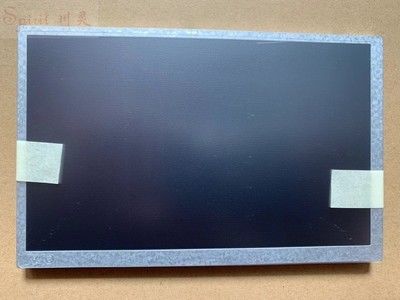

12.1" LCM 1280×800RGB  700 cd/m² LQ121K1LG58 Sharp TFT LCD Display

LQ121 Series LQ121K1LG61 LQ121K1LG59 LQ121K1LG58 LQ121K1LG53 LQ121K1LG52

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
	WLED	Edge light type	-	-	50K(Typ.)	-
Interface Features :	Position	Type	WLED Driver
	-	Connector	With LED Driver
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
	JST	SM06B-SHLS-TF	1 pcs	1.0 mm	6 pins
Driver Electrical :	Current Input		Voltage Input			Consumption
	385/750mA (Typ./Max.)		12.0V (Typ.)			-

LQ121K1LG58 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×9.6(D) mm, viewing area size of 264.3(W)×167.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 550g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ121K1LG58 can provides 700 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. LQ121K1LG58 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
