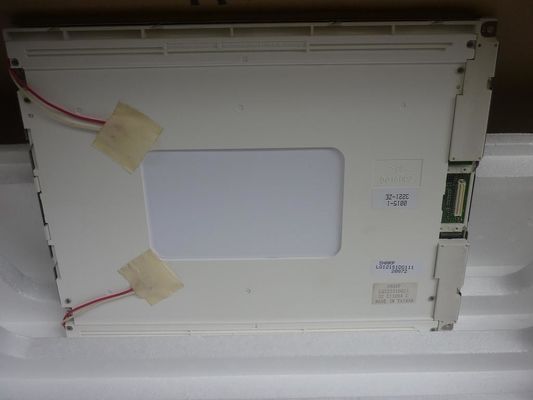

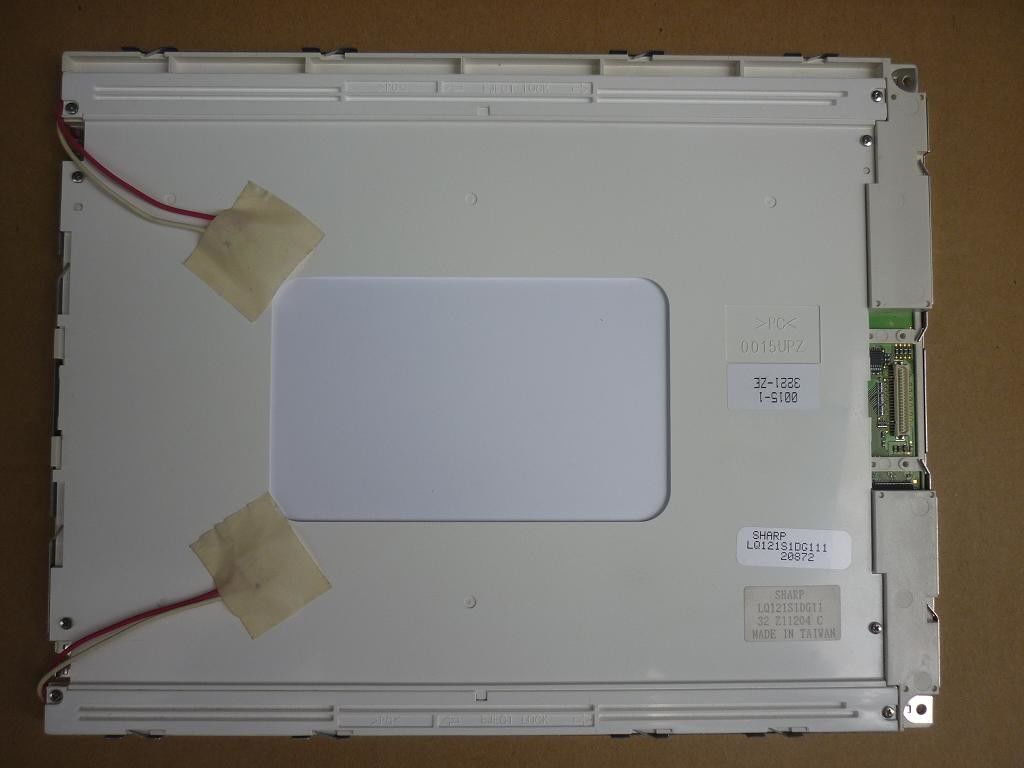

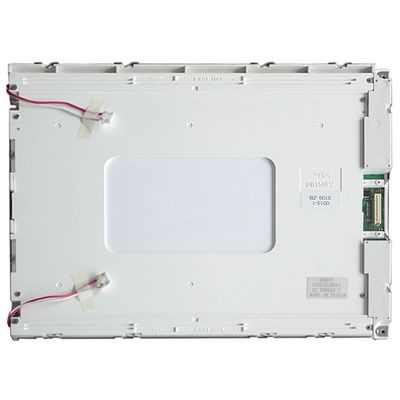

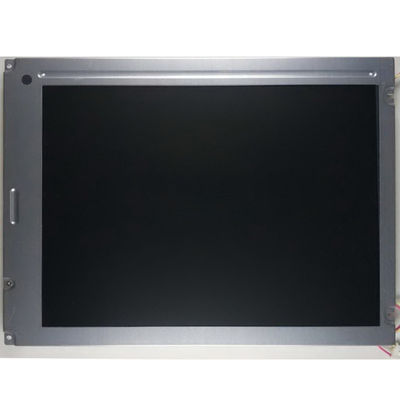

Product Details:
|
| Model: | LQ121S1DG11 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Light Source: | CCFL [2 Pcs] , 50K Hours , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 41 Pins Connector |
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| Luminance: | 250 Cd/m² (Typ.) | Viewing Angle: | 60/60/45/55 |
| Highlight: | LVDS TFT LCD Display,WLED High Brightness LCD Display |
||
LQ121 Series LQ121S1DG41 LQ121S1DG31 LQ121S1DG21 LQ121S1DG11 LQ121S1DC71
| Screen Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 246×184.5 mm | 249.0×187.5 mm | 290×225 mm | 13.2 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 830g (Typ.) | - | Antiglare (Haze 28%), Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 60/60/45/55 (Typ.)(CR≥10) | 15/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6409K | 262K (6-bit) | X:0.315; Y:0.325 | |
| White Uniformity : | 1.45 (Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 50K(Typ.) | 2 pcs | Straight | Replaceable (LQ0DDB5185) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 550V (Typ.) | 2.0/6.0/6.5mA (Min./Typ./Max.) | 6.6W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 20/35/60KHz (Min./Typ./Max.) | 1200/1400V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 180/180mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | VIL≤0.9V; 2.5V≤VIH | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF9MA-41P-1V | 1 pcs | 41 pins | 1.0 mm | DRGB-41P1C6B-010D | |
LQ121S1DG11 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 290(W)×225(H)×13.7(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (3H), net weight of 830g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ121S1DG11 can provides 250 cd/m² display brightness 300:1 transimissive contrast ratio, 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed.
