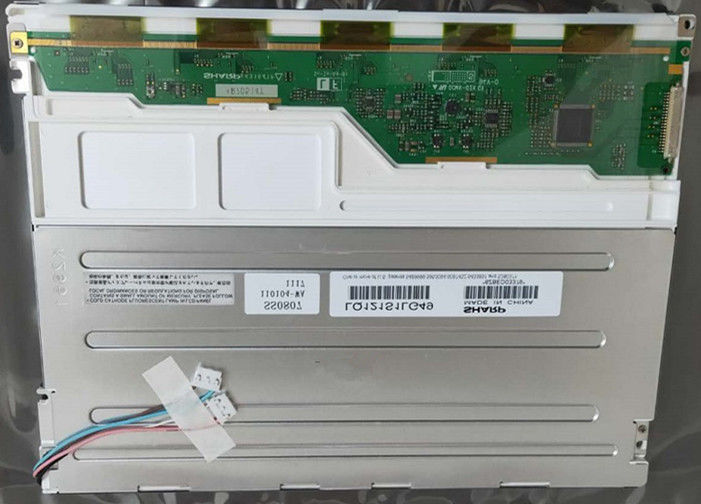

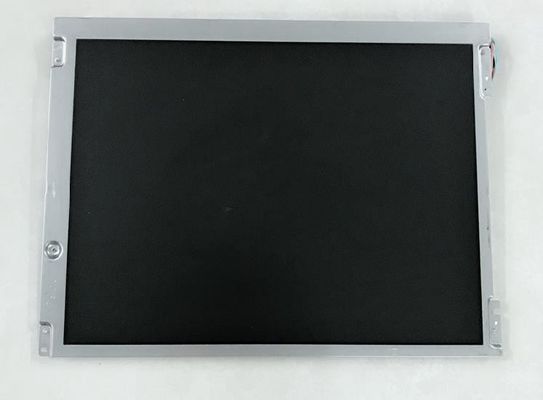

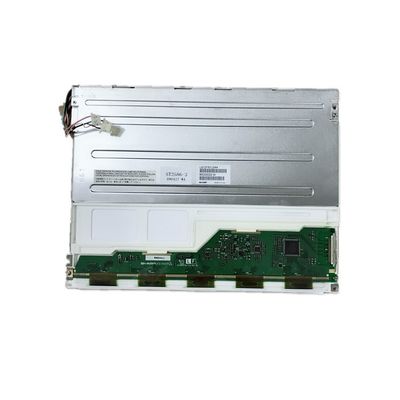

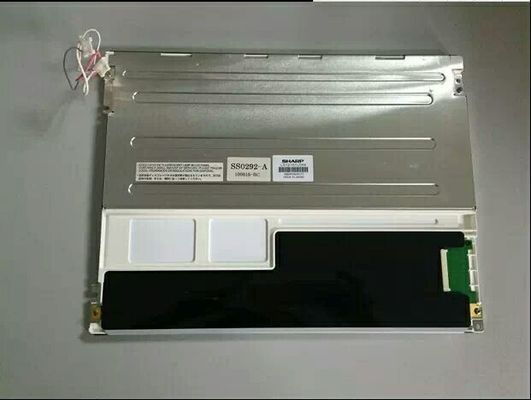

Product Details:
|
| Panel Model: | LQ121S1LG49 | Resolution: | 800(RGB)×600, SVGA, 82PPI |
|---|---|---|---|
| Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins Connector | Lamp Type: | 2 Pcs CCFL , 50K Hours , Without Driver |
| Panel Size: | 12.1INCH | Brightness: | 370 Cd/m² (Typ.) |
| Environment: | Operating Temp.: -10 ~ 65 °C ; Storage Temp.: -30 ~ 70 °C | Pixel Format: | RGB Vertical Stripe |
| High Light: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
LQ121 Series LQ121S1LG61 LQ121S1LG55 LQ121S1LG51 LQ121S1LG49
| Panel Size : | 12.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 246×184.5 mm | 249.0×187.5 mm | 276×209 mm | 11.0 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 660g (Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 370 cd/m² (Typ.) | TN, Normally White, Transmissive | 450:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/50/60 (Typ.)(CR≥10) | 6 o'clock | 15/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 230/380mA (Typ.)(5V/3.3V) | 3.3/5.0 (Typ.)(Vcc) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-SEB20P-HF13 | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C6B-070D | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | Straight | 2 pcs | 50K(Min.) | Replaceable | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.0/6.0/6.5mA (Min./Typ./Max.) | 583V (Typ.) | 7.0W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1200/1400/1500V (Max.)(Ta=+25/0/-10℃) | 40/60/80KHz (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
