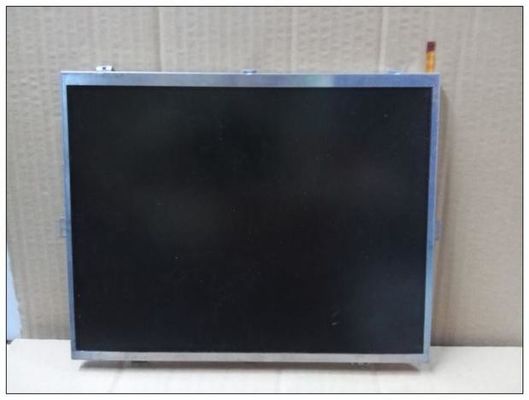

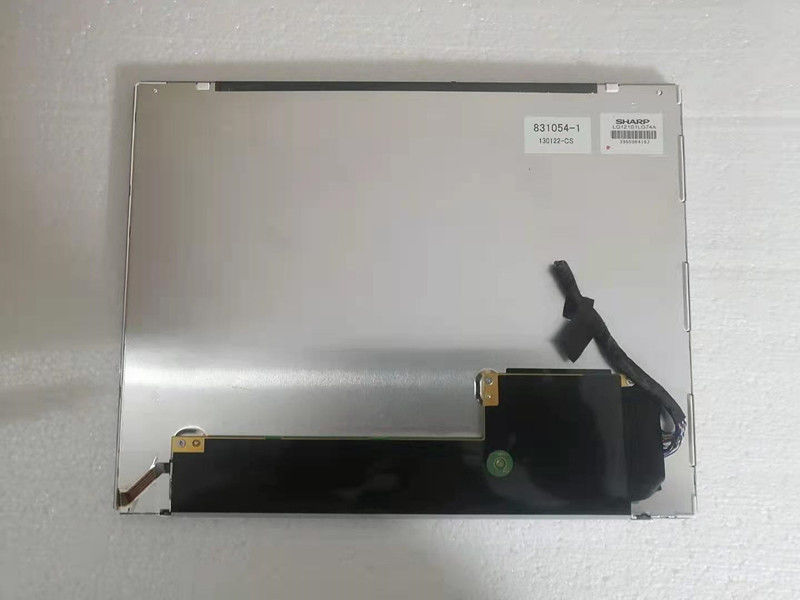

Product Details:
|
| Model Name: | LQ121S1LG71 | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Luminance: | 450 Cd/m² (Typ.) | Pixel Number: | 800(RGB)×600 (SVGA) 82PPI |
| Signal Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector | Backlight: | WLED , 50K Hours , With LED Driver |
| Viewing Angle: | 80/80/65/80 | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 80 °C |
| High Light: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
LQ121 Series LQ121S1LG74A LQ121S1LG74 LQ121S1LG73 LQ121S1LG72 LQ121S1LG71
| Panel Size : | 12.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.1025×0.3075 mm | 0.3075×0.3075 mm [82PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 246×184.5 mm | - | 265×205 mm | 9.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M2) on up, down bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 550g (Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/65/80 (Typ.)(CR≥10) | 6 o'clock | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | 16.2M (6-bit + FRC) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 260/320mA (Typ.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-XPB30SRL-HF11 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P1C8B-270A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 350/500mA (Typ./Max.) | 12.0±2.0V | - | ||||
LQ121S1LG71 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 265(W)×205(H)×10(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 550g (Max.). As a TN, Normally White, Transmissive LCM product, LQ121S1LG71 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver.
