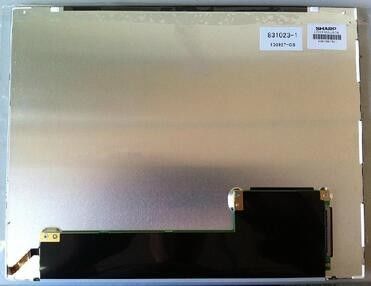

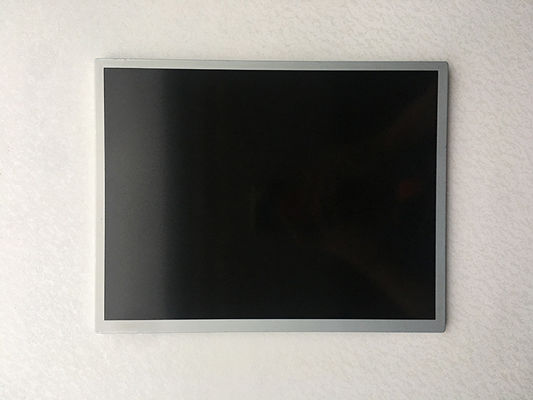

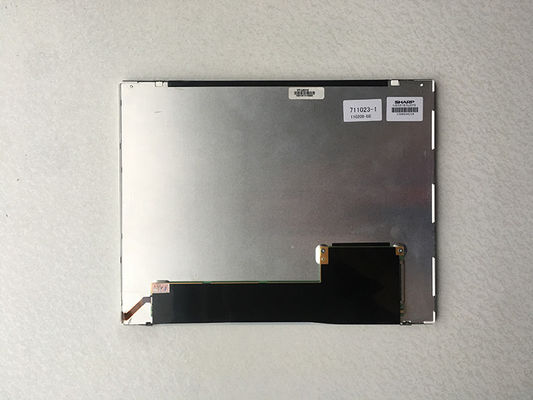

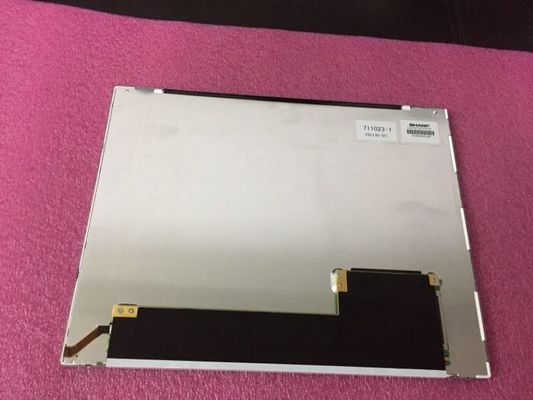

LQ121S1LG72 Sharp 12.1" LCM 800×600RGB 300cd/m² INDUSTRIAL LCD DISPLAY

Large Image : LQ121S1LG72 Sharp 12.1" LCM 800×600RGB 300cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	SHARP
Certification:	ISO9001
Model Number:	LQ121S1LG72

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	20 pcs / box 13 Kgs 504×426×326 mm (L×W×H)
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	500PCS

Contact Now

LQ121S1LG72 Sharp 12.1" LCM 800×600RGB 300cd/m² INDUSTRIAL LCD DISPLAY

Description

Panel Model:	LQ121S1LG72	Panel Size:	12.1INCH
Resolution:	800(RGB)×600, SVGA, 82PPI	Brightness:	300 Cd/m² (Typ.)
Signal Interface:	LVDS (1 Ch, 8-bit) , 30 Pins Connector	Lamp Type:	WLED , 50K Hours , With LED Driver
Surface:	Antiglare, Hard Coating (3H)	Environment:	Operating Temp.: -10 ~ 75 °C ; Storage Temp.: -30 ~ 75 °C
Highlight:	LVDS TFT LCD Panel , SVGA Sharp TFT LCD Display

LQ121 Series LQ121S1LG74A LQ121S1LG74 LQ121S1LG73 LQ121S1LG72 LQ121S1LG71

Sharp LQ121S1LG72 Mechanical Details

Pixel Features :	Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.1025×0.3075 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.3075×0.3075 (H×V) [82PPI]
Mechanical Size :	Active Area(mm) 246(H) × 184.5(V) Bezel Area(mm) 249.6(H) × 188.1(V) Outline Dim.(mm) 265(H) × 205(V) Depth(mm) 9.5±0.5
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Side mounting holes (4-M2) on up, down bezel
Other Spec :	Weight 550g (Max.) Treatment Antiglare, Hard coating (3H)

Sharp LQ121S1LG72 Optical Details

Basic Information :	Luminance(cd/m²) 300 (Typ.) Contrast Ratio 900:1 (Typ.) (Transmissive) Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response(ms) 30 (Typ.)(Tr+Td); 10 (Typ.)(G to G)
Color Performance :	White Coordinate Wx:0.290; Wy:0.305 Display Colors 16.2M (6-bit + FRC) Color Temperature 8405K White Uniformity 1.33 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 78% sRGB 100% coverage Adobe RGB 78% coverage DCI-P3 81% coverage Rec.2020 58% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ121S1LG72 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 360/430mA (Typ./Max.)
Signal Type :	LVDS (1 ch, 8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JAE FI-XPB30SRL-HF11 1.0 mm 30 pins 1 pcs LVDS-30P1C8B-270A

Sharp LQ121S1LG72 Backlight Details

Backlight Features :	Type WLED Quantity - Position Edge light type (Bottom side) Replacement - Shape - Life Time 50K(Typ.) (Hours)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply 12.0±1.8V Current Supply 300/400mA (Typ./Max.)

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
