Product Details:
|

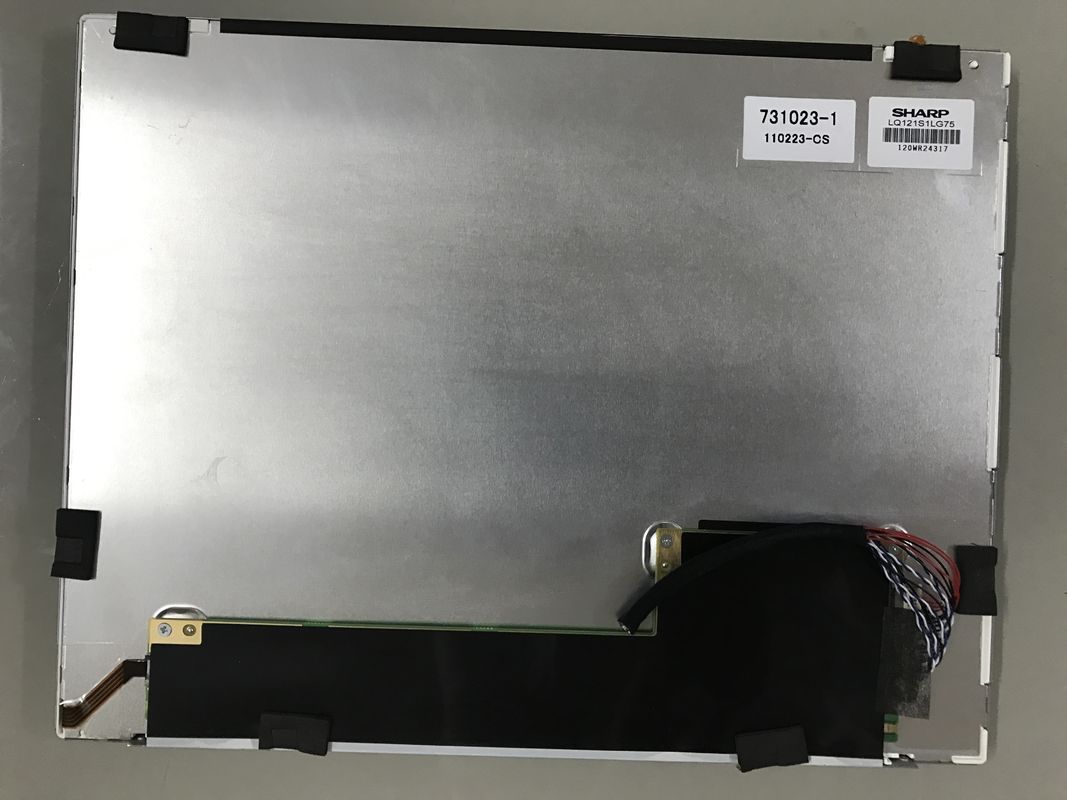

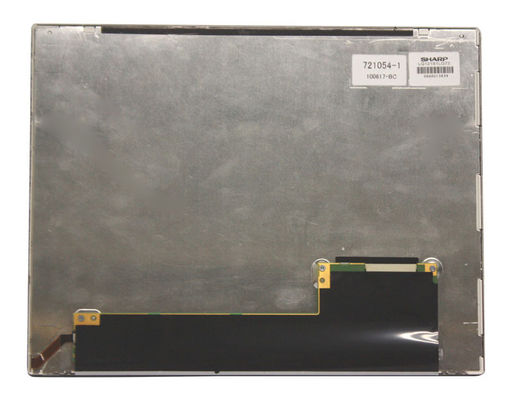

| Model: | LQ121S1LG74 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Luminance: | 450 Cd/m² (Typ.) | Pixel Format: | 800(RGB)×600 [SVGA] 82PPI |
| Light Source: | WLED , With LED Driver | Interface Type: | LVDS (1 Ch, 8-bit) |
| Type: | A-Si TFT-LCD , LCM | Environment: | Operating Temperature: -10 ~ 75 °C ; Storage Temperature: -30 ~ 75 °C |
| Highlight: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
LQ121 Series LQ121S1LG74A LQ121S1LG74 LQ121S1LG73 LQ121S1LG72 LQ121S1LG71
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 265(H) × 205(V) | Depth(mm) | 9.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 550g (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | - |
|---|---|---|---|---|
| Viewing Angle | - | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | - | |
| Color Performance : | White Coordinate | - | Display Colors | 16.2M (6-bit + FRC) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 6.25W (Typ.) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
