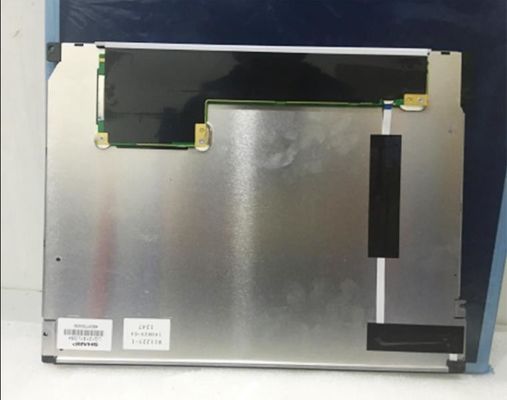

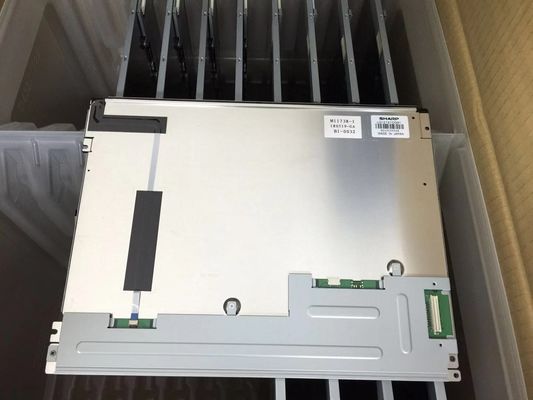

Product Details:
|
| Model: | LQ121S1LG84 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Luminance: | 450 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/60/80 | Interface Type: | LVDS (1 Ch, 6-bit) , 20 Pins Connector |
| Light Source: | WLED , 50K Hours , With LED Driver | Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| Highlight: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||

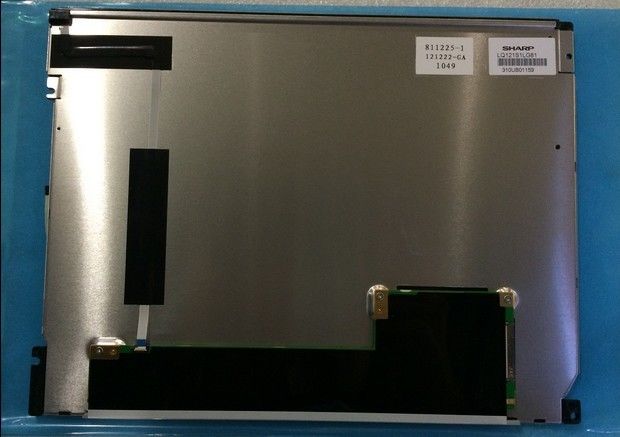

LQ121 Series LQ121S1LG84 LQ121S1LG81 LQ121S1LG79 LQ121S1LG75
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.1025×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3075×0.3075 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 246(H) × 184.5(V) | Bezel Area(mm) | 249.0(H) × 187.5(V) |
| Outline Dim.(mm) | 276(H) × 209(V) | Depth(mm) | 9.1±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel | |||
| Other Spec : | Weight | 600g (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.305; Y:0.325 | Display Colors | 262K (6-bit) |
| Color Temperature | 6974K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 5.1W (Typ.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 270/350mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-SEB20P-HF | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C6B-070F | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM06B-SHLS-TF | 1 pcs | 6 pins | 1.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.8V | Current Supply | 350/500mA (Typ./Max.) | ||
LQ121S1LG84 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 276(W)×209(H)×9.6(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 600g (Max.). As a TN, Normally White, Transmissive LCM product, LQ121S1LG84 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, With LED Driver.
