LQ121X1LH73 Sharp 12.1" LCM 1024×768RGB  200cd/m² INDUSTRIAL LCD DISPLAY

LQ121X1LH73 Sharp 12.1" LCM 1024×768RGB  200cd/m² INDUSTRIAL LCD DISPLAY
LQ121X1LH73 Sharp 12.1" LCM 1024×768RGB  200cd/m² INDUSTRIAL LCD DISPLAY LQ121X1LH73 Sharp 12.1" LCM 1024×768RGB  200cd/m² INDUSTRIAL LCD DISPLAY LQ121X1LH73 Sharp 12.1" LCM 1024×768RGB  200cd/m² INDUSTRIAL LCD DISPLAY

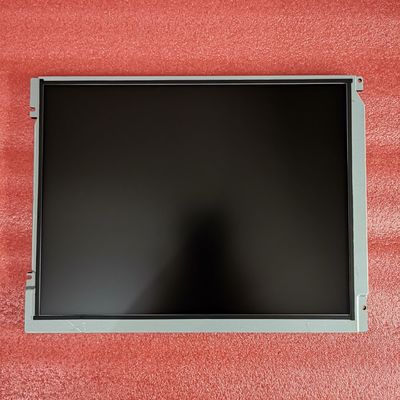

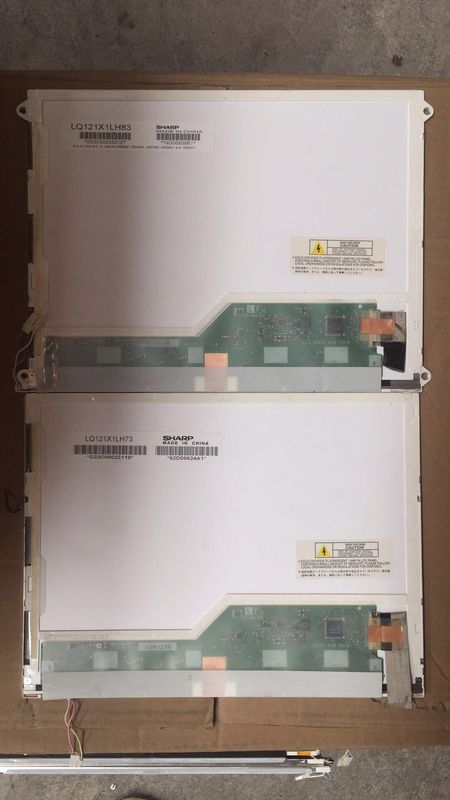

Large Image :  LQ121X1LH73 Sharp 12.1" LCM 1024×768RGB  200cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ121X1LH73
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

LQ121X1LH73 Sharp 12.1" LCM 1024×768RGB  200cd/m² INDUSTRIAL LCD DISPLAY

Description
Model: LQ121X1LH73 Pixel Format: 1024(RGB)×768 [XGA] 105PPI
Diagonal Size: 12.1 Inch Luminance: 200cd/m²
Interface Type: LVDS (1 Ch, 6-bit) , 20 Pins Connector Light Source: CCFL [1 Pcs] , 10K Hours , W/O Driver
Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C Configuration: RGB Vertical Stripe
Highlight:

LVDS TFT LCD Panel

,

SVGA Sharp TFT LCD Display

LQ121 Series LQ121X3LH01 LQ121X3LG02 LQ121X1LH83 LQ121X1LH73





Sharp LQ121X1LH73 Optical Details

Basic Detail :
Luminance
200 cd/m² (Typ.)
Contrast Ratio
300:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
30 (Typ.)(Tr+Td) ms
Viewing Angle
45/45/10/30 (Min.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K (6-bit)
Color Temperature
6485K
White Variation
1.10/1.30 (Typ./Max.)(5 points)





Sharp LQ121X1LH73 Mechanical Details

Pixel Features :
Number of Pixel
1024(RGB)×768, XGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.080×0.240 mm
Pixel Pitch(W×H)
0.240×0.240 mm [105PPI]
Physical Size :
Active Viewing
245.76(W)×184.32(H) mm
Overall Dim.
260(W)×197.5(H) mm
Bezel Opening
-
Overall Depth
5.55 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Other Detail :
Mass
245g (Typ.)
Surface
Antiglare, Hard coating (2H), Antireflection





Sharp LQ121X1LH73 Interface Detail

Signal Electrical :
Input Current
235mA (Typ.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
DF19L-20P-1H
1.0 mm
20 pins
1 pcs
LVDS-20P1C6B-070A





Sharp LQ121X1LH73 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
1 pcs
Position
Edge light type
Exchange
-
Lamp Shape
Straight
Lamp Life
10K(Min.) (Hours)
Lamp Electrical :
Input Voltage
635V (Typ.)
Input Current
3.0/4.2/5.0mA (Min./Typ./Max.)
Frequency
45/70/80KHz (Min./Typ./Max.)
Turn-on Voltage
1030/1200V (Max.)(Ta=+25/0℃)
Consumption
2.67W (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BHTR-02VS
5.1 mm
2 pins
1 pcs
BLL-2PINS-HL
Backlight Driver :
No





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
