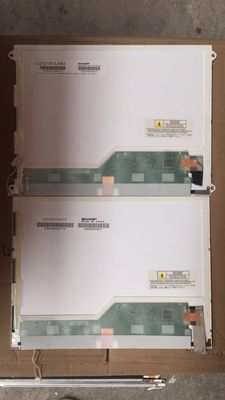

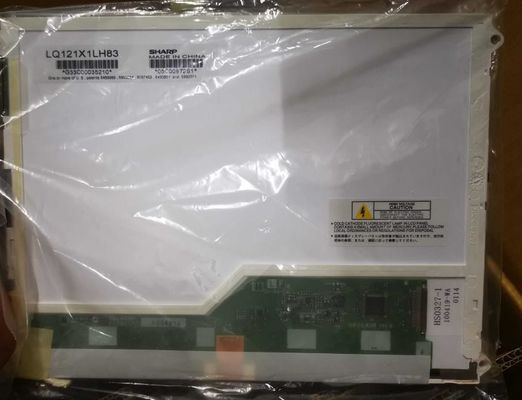

LQ121X1LH83 Sharp 12.1" LCM 1024×768RGB 200cd/m² INDUSTRIAL LCD DISPLAY

Large Image : LQ121X1LH83 Sharp 12.1" LCM 1024×768RGB 200cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	SHARP
Certification:	ISO9001
Model Number:	LQ121X1LH83

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	100PCS

Contact Now

LQ121X1LH83 Sharp 12.1" LCM 1024×768RGB 200cd/m² INDUSTRIAL LCD DISPLAY

Description

Panel Model:	LQ121X1LH83	Panel Size:	12.1"
Brightness:	200 Cd/m² (Typ.)	Resolution:	1024(RGB)×768, XGA, 105PPI
Signal Interface:	LVDS (1 Ch, 6-bit) , 20 Pins Connector	Lamp Type:	1 Pcs CCFL , 10K Hours , Without Driver
Touch Screen:	Without	Environment:	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C
Highlight:	LVDS TFT LCD Panel , SVGA Sharp TFT LCD Display

LQ121 Series LQ121X3LH01 LQ121X3LG02 LQ121X1LH83 LQ121X1LH73

Sharp LQ121X1LH83 Mechanical Details

Pixel Features :	Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.080×0.240 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.240×0.240 (H×V) [105PPI]
Mechanical Size :	Active Area(mm) 245.76(H) × 184.32(V) Bezel Area(mm) 250.8(H) × 188.4(V) Outline Dim.(mm) 274.5(H) × 197.5(V) Depth(mm) 3.4~5.35 (Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Face mounting holes (4-Φ3.4) on left, right slugs
Other Spec :	Weight 245g (Typ.) Treatment Antiglare, Hard coating (2H), Antireflection

Sharp LQ121X1LH83 Optical Details

Basic Information :	Luminance(cd/m²) 200 (Typ.) Contrast Ratio 300:1 (Typ.) (Transmissive) Viewing Angle 45/45/10/30 (Min.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response(ms) 30 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 262K (6-bit) Color Temperature 6485K White Uniformity 1.10/1.30 (Typ./Max.)(5 points)

Sharp LQ121X1LH83 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 235mA (Typ.)
Signal Type :	LVDS (1 ch, 6-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration HRS DF19L-20P-1H 1.0 mm 20 pins 1 pcs LVDS-20P1C6B-070A

Sharp LQ121X1LH83 Backlight Details

Backlight Features :	Type CCFL Quantity 1 pcs Position Edge light type (Bottom side) Replacement - Shape Straight Life Time 10K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 635V (Typ.) Current Supply 3.0/4.2/5.0mA (Min./Typ./Max.) Frequency 45/70/80KHz (Min./Typ./Max.) Startup Voltage 1030/1200V (Max.)(Ta=+25/0℃) Consumption 2.67W (Typ.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST BHTR-02VS 5.1 mm 2 pins 1 pcs BLL-2PINS-HL
Backlight Driver :	No

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
