Product Details:
|
| Model Name: | LQ121X3LG02 | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Luminance: | 1200cd/m² | Pixel Number: | 1024(RGB)×768 (XGA) 105PPI |
| Signal Type: | LVDS (1 Ch, 6-bit) , 20 Pins Connector | Backlight: | 8S5P WLED , 50K Hours , No Driver |
| Refresh Rate: | 60Hz | Max. Ratings: | Storage Temp.: -35 ~ 75 °C Operating Temp.: -20 ~ 50 °C |
| High Light: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
| Panel Size : | 12.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.080×0.240 mm | 0.240×0.240 mm [105PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 245.76×184.32 mm | 250.4×188.9 mm | 259×205 mm | 7.75/8.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (12 pcs) on left, right, up, down slugs; Side mounting holes (4 pcs) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 530/550g (Typ./Max.) | Antiglare, Hard coating (2H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 1200 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/50/60 (Typ.)(CR≥10) | 6 o'clock | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| Luminance Variation : | 1.20/1.45 (Typ./Max.)(5 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 380/600mA (Typ.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF19L-20P-1H | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C6B-070A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 5 strings | 8S5P | 50K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 70/70mA (Typ./Max.) | 24.0/27.2V (Typ./Max.) | 8.4/9.5W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | FPC | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 10 pins | BLE-10PINS-CCCCCNAAAA | ||||
LQ121 Series LQ121X3LH01 LQ121X3LG02 LQ121X1LH83 LQ121X1LH73

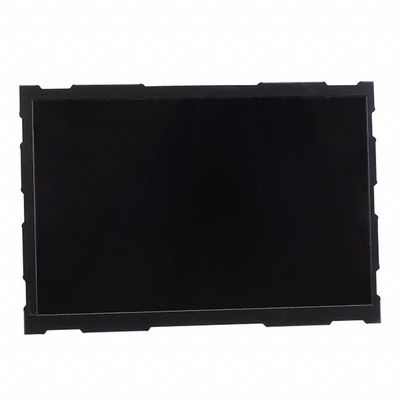

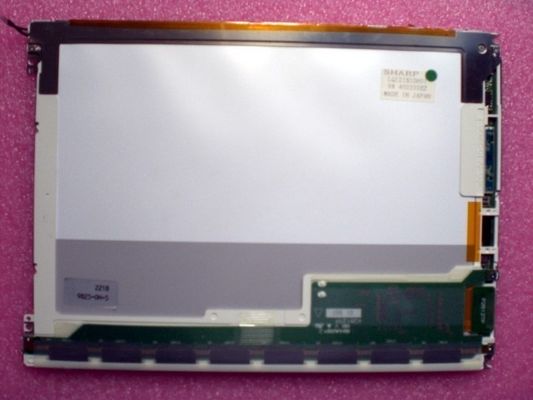

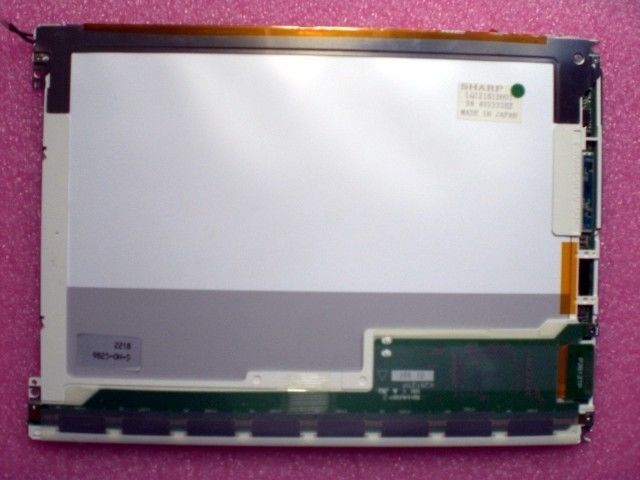

LQ121X3LG02 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 259(W)×205(H)×8(D) mm, viewing area size of 250.4(W)×188.9(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 530/550g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, LQ121X3LG02 can provides 1200 cd/m² display brightness 1000:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 40% (NTSC). This product adopted 8S5P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed. LQ121X3LG02 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
