LQ121X3LH01 12.1" 105PPI 1024×768 RGB Sharp TFT LCD Display

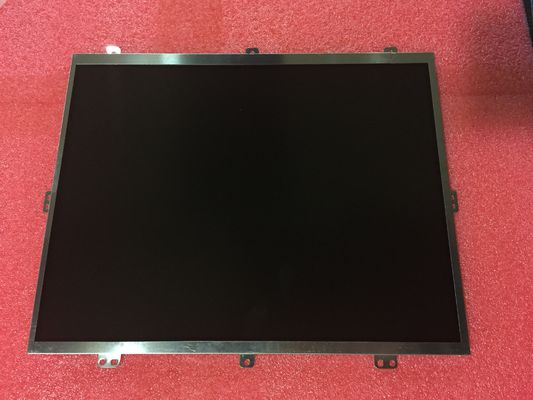

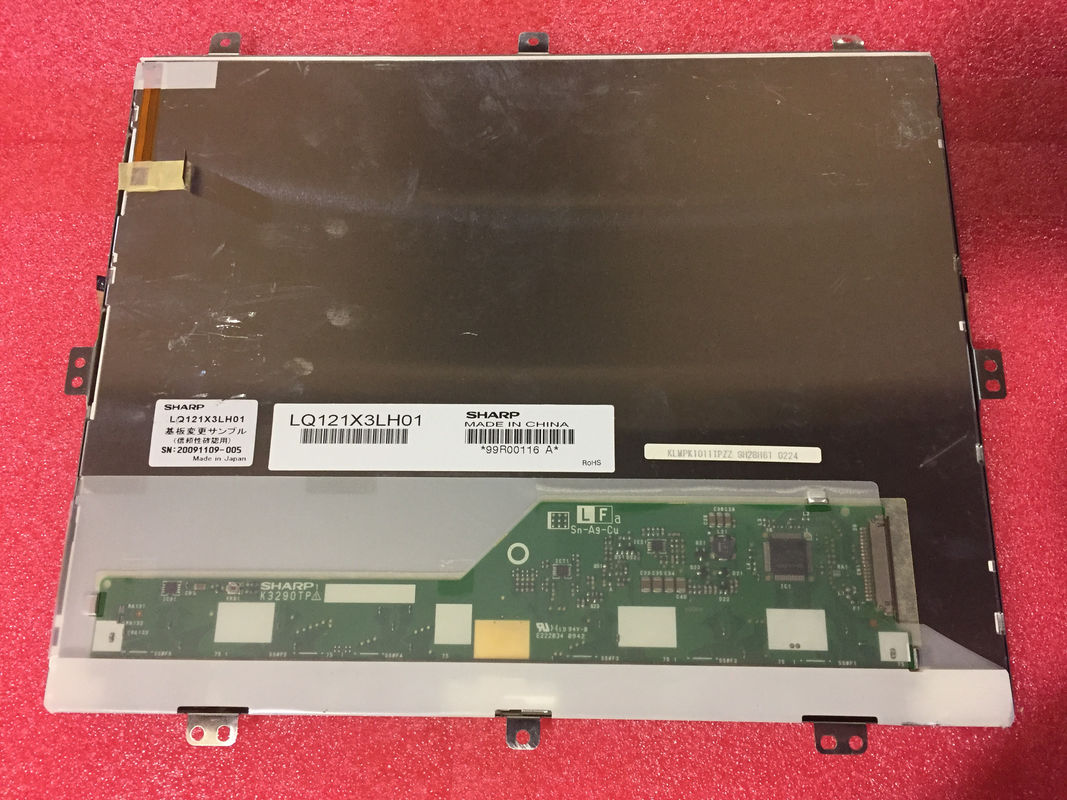

Large Image : LQ121X3LH01 12.1" 105PPI 1024×768 RGB Sharp TFT LCD Display

Product Details:

Place of Origin:	JAPAN
Brand Name:	SHARP
Certification:	ISO9001
Model Number:	LQ121X3LH01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	300PCS

Contact Now

LQ121X3LH01 12.1" 105PPI 1024×768 RGB Sharp TFT LCD Display

Description

Model Name:	LQ121X3LH01	Pixel Number:	1024(RGB)×768 (XGA) 105PPI
Screen Size:	12.1"	Active Area(mm):	245.76 × 184.32 (H×V)
Signal Type:	LVDS (1 Ch, 6-bit) Connector	Backlight:	WLED
Screen Type:	LCM , A-Si TFT-LCD	Arrangement:	RGB Vertical Stripe
Highlight:	LVDS TFT LCD Panel , SVGA Sharp TFT LCD Display

LQ121 Series LQ121X3LH01 LQ121X3LG02 LQ121X1LH83 LQ121X1LH73

Sharp LQ121X3LH01 Application Details

Basic Detail :	Manufacturer LQ121X3LH01Model Name Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 12.1 inch Designed For

Sharp LQ121X3LH01 Optical Details

Basic Detail :	Luminance - Contrast Ratio - Good View at - Response Speed - Viewing Angle - Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity - Support Color 262K (6-bit)

Sharp LQ121X3LH01 Mechanical Details

Pixel Features :	Number of Pixel 1024(RGB)×768, XGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.080×0.240 mm Pixel Pitch(W×H) 0.240×0.240 mm [105PPI]
Physical Size :	Active Viewing 245.76(W)×184.32(H) mm Overall Dim. -
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (12 pcs) on left, right, up, down slugs
Other Detail :	Mass - Surface Antiglare

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LQ121X3LH01 12.1" 105PPI 1024×768 RGB Sharp TFT LCD Display 0
