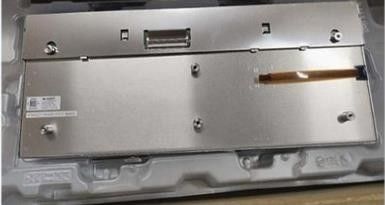

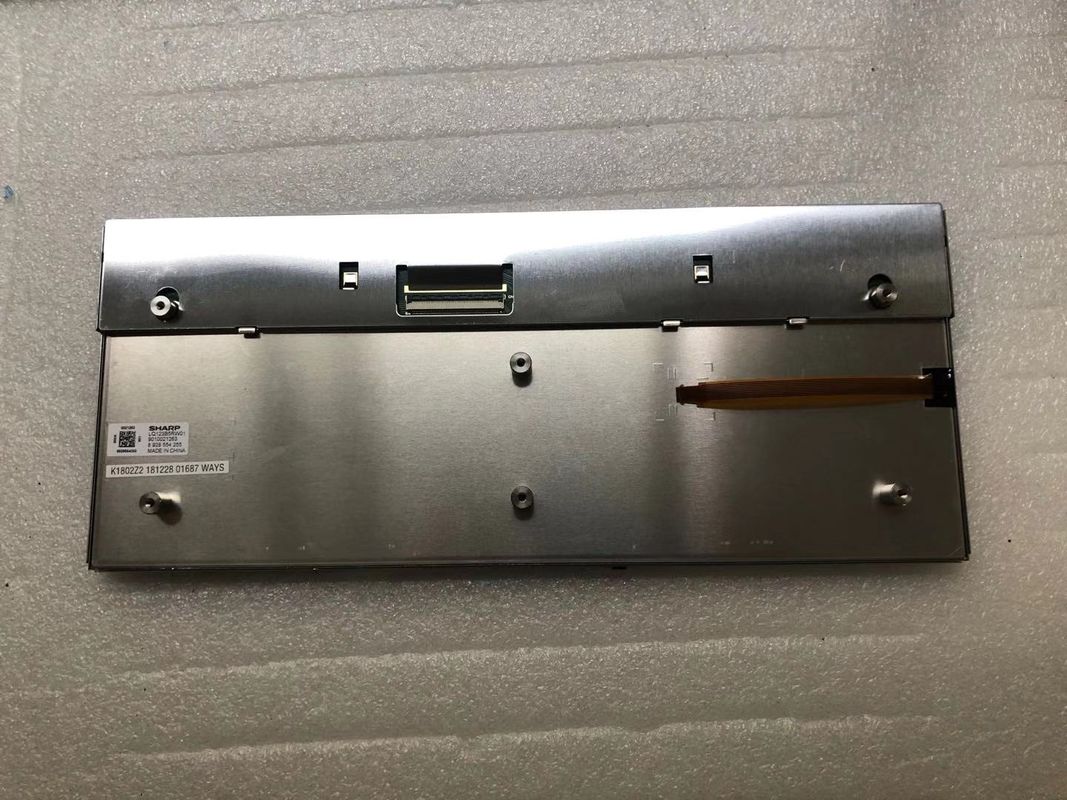

Product Details:
|
| Panel Model: | LQ123B5RW01 | Brightness: | 690cd/m² |
|---|---|---|---|
| Resolution: | 1440(RGB)×540, 125PPI | Panel Size: | 12.3" |
| Panel Type: | A-Si TFT-LCD, LCM | Signal Interface: | RSDS (1 Channel) , 64 Pins Connector |
| Lamp Type: | 12S4P WLED , 10K Hours , Without Driver | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
| Basic Information : | Luminance | 690 cd/m² (Typ.) | Contrast Ratio | 1700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 15 (Typ.)(Tr+Td); 80 (Typ.)(G to G) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | ASV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.303; Wy:0.333 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6992K | White Uniformity | 1.18/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 99% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1440(RGB)×540 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0675×0.2025 mm | Pixel Pitch(W×H) | 0.2025×0.2025 mm [125PPI] | |
| Physical Size : | Active Viewing | 291.6(W)×109.35(H) mm | Overall Dim. | 311.4(W)×130.2(H) mm |
| Bezel Opening | 296.2(W)×113.35(H) mm | Overall Depth | 13.9/19.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 8:3 | Shape Style | ||
| Fixation : | Rear mounting Pole (6-M3) | |||
| Other Detail : | Mass | 720g (Max.) | Surface | - |
| Signal Electrical : | Input Current | 34/34/36mA (Typ.)(IDD/AIDDP/AIDDM) | Input Voltage | 3.3/6.37/-6.37V (Typ.)(VDD/AVDDP/AVDDM) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | RSDS (1 Channel) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Kyocera Elco | 04-6288-064-000-846+ | 1 pcs | 0.5 mm | 64 pins | ||
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 12S4P | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80/90mA (Typ./Max.) | Input Voltage | 31.4/36.5/42.6V (Min./Typ./Max.) | ||
| Consumption | 11.68W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 10 pins | ||||
| Backlight Driver : | No | |||||

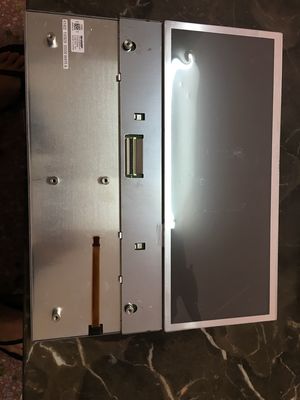

LQ123B5RW01 supports display 1440(RGB)×540 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 291.6(W)×109.35(H) mm, outline size of 311.4(W)×130.2(H)×19.7(D) mm, viewing area size of 296.2(W)×113.35(H) mm, net weight of 720g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ123B5RW01 can provides 690 cd/m² display brightness 1700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15 (Typ.)(Tr+Td); 80 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
