12.5Inch LCM 3840×2160RGB  LQ125D1JW33 Sharp TFT LCD Display

12.5Inch LCM 3840×2160RGB  LQ125D1JW33 Sharp TFT LCD Display
12.5Inch LCM 3840×2160RGB  LQ125D1JW33 Sharp TFT LCD Display 12.5Inch LCM 3840×2160RGB  LQ125D1JW33 Sharp TFT LCD Display 12.5Inch LCM 3840×2160RGB  LQ125D1JW33 Sharp TFT LCD Display

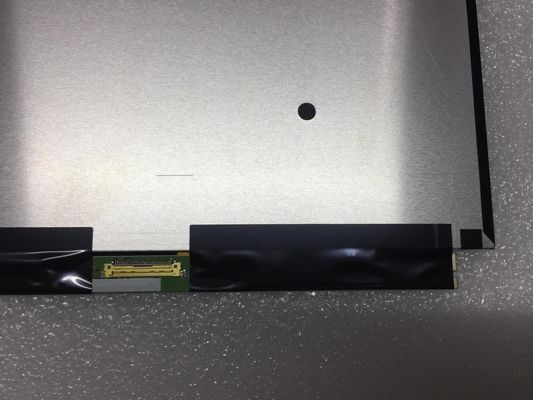

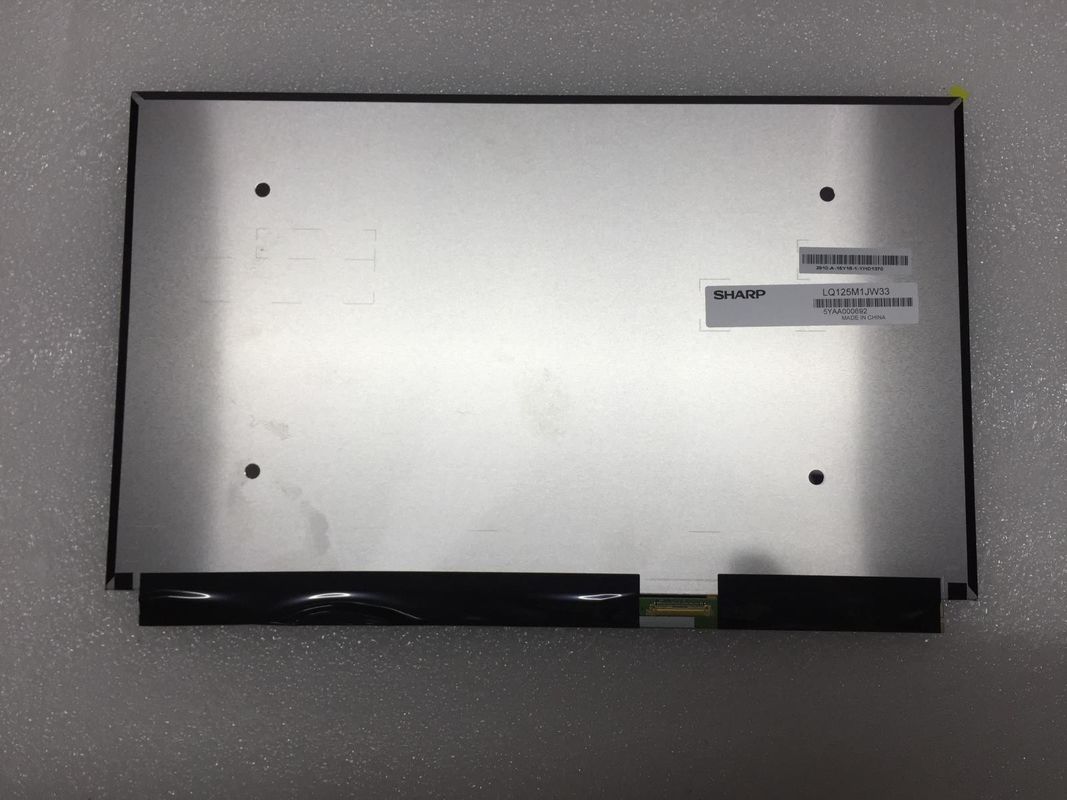

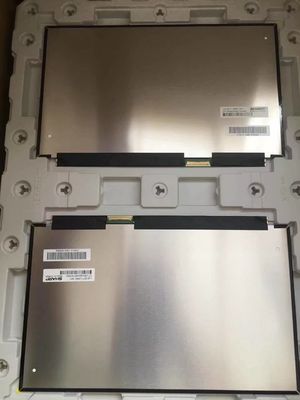

Large Image :  12.5Inch LCM 3840×2160RGB  LQ125D1JW33 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ125D1JW33
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 2000PCS
Contact Now

12.5Inch LCM 3840×2160RGB  LQ125D1JW33 Sharp TFT LCD Display

Description
Model: LQ125D1JW33 Pixel Format: 3840(RGB)×2160 [UHD] 352PPI
Diagonal Size: 12.5 Inch Viewing Angle: 88/88/88/88
Interface Type: EDP (4 Lanes) 40 Pins Connector Light Source: WLED , 15K Hours , With LED Driver
Type: Oxide TFT-LCD , LCM Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

LVDS TFT LCD Panel

,

SVGA Sharp TFT LCD Display

LQ125 Series   LQ125D1JW34   LQ125D1JW33   LQ125D1JW31



Sharp LQ125D1JW33 Mechanical Details

Pixel Features :
Pixel Format
3840(RGB)×2160, UHD
Dot Pitch
0.024×0.072 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.072×0.072 mm (H×V) [352PPI]
Mechanical Size :
Display Area
276.48×155.52 mm (H×V)
Bezel Area
-
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Without





Sharp LQ125D1JW33 Optical Details

Basic Information :
Brightness
-
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
30 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.2M (8-bit)
Color Temperature
6485K
Uniformity
1.25/1.53 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
-
sRGB
100% coverage
Adobe RGB
100% coverage
DCI-P3
88% coverage
Rec.2020
71% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ125D1JW33 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
15K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
5.0/12.0/21.0V (Min./Typ./Max.)
Current Input
-





Sharp LQ125D1JW33 Interface Detail

Signal Systerm :
eDP (4 Lanes)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
-
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20525-040E-02
0.4 mm
40 pins
1 pcs



FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
