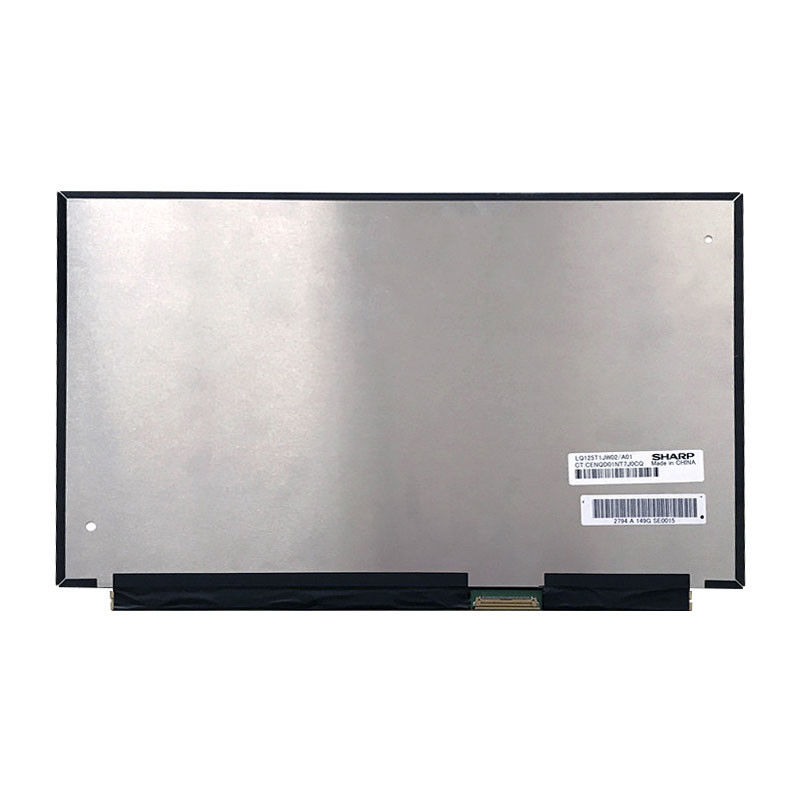

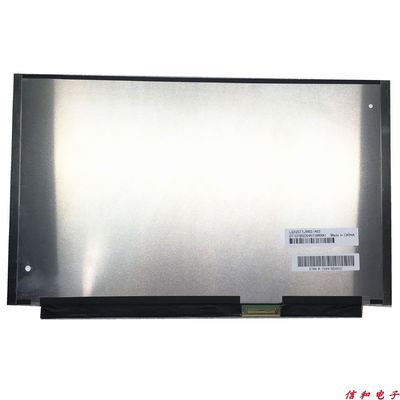

Product Details:
|
| Panel Model: | LQ125T1JW02 | Panel Size: | 12.5" |
|---|---|---|---|
| Brightness: | 340cd/m² | Resolution: | 2560(RGB)×1440, Quad-HD, 235PPI |
| Viewing Angle: | 89/89/89/89 | Signal Interface: | EDP (4 Lanes) , 40 Pins Connector |
| Lamp Type: | WLED , 15K Hours , With LED Driver | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
| Pixel Features : | Pixel Format | 2560(RGB)×1440 [Quad-HD] | Dot Pitch | 0.036×0.108 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.108×0.108 mm (H×V) [235PPI] | |
| Mechanical Size : | Display Area | 276.48×155.52 mm (H×V) | Bezel Area | - |
| Outline Dim. | 282.68×178.66 mm (H×V) | Outline Depth | 2.1/2.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 175g (Max.) | Surface | Antiglare, Hard coating (2H) |
| Basic Information : | Brightness | 340 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Typ./Max.)(13 points) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 2.64/2.91W (Typ./Max.) | |||||
| Signal Systerm : | eDP (4 Lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 406/785mA (Typ./Max.) | ||
| Consumption | 1.34/2.59W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-040E-12 | 0.5 mm | 40 pins | 1 pcs | ||
LQ125T1JW02 supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 276.48(W)×155.52(H) mm, outline size of 282.68(W)×178.66(H)×2.3(D) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 175g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LQ125T1JW02 can provides 340 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver.
