LQ125T1JX03B Sharp 12.5" LCM 2560×1440RGB  400cd/m² INDUSTRIAL LCD DISPLAY

LQ125T1JX03B Sharp 12.5" LCM 2560×1440RGB  400cd/m² INDUSTRIAL LCD DISPLAY
LQ125T1JX03B Sharp 12.5" LCM 2560×1440RGB  400cd/m² INDUSTRIAL LCD DISPLAY LQ125T1JX03B Sharp 12.5" LCM 2560×1440RGB  400cd/m² INDUSTRIAL LCD DISPLAY

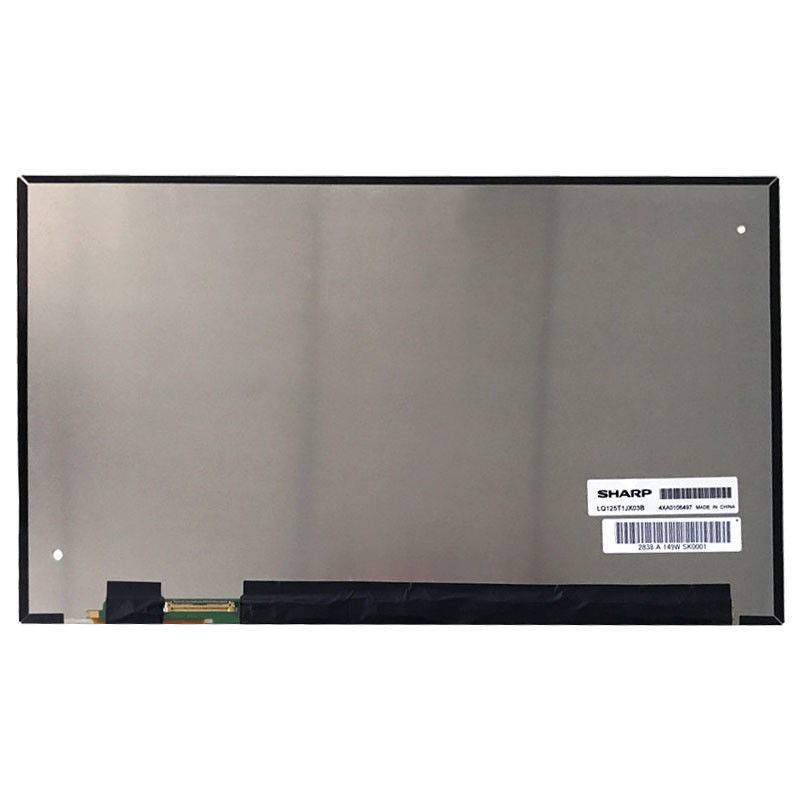

Large Image :  LQ125T1JX03B Sharp 12.5" LCM 2560×1440RGB  400cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ125T1JX03B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 10.0 Kgs 534×394×240 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 500PCS
Contact Now

LQ125T1JX03B Sharp 12.5" LCM 2560×1440RGB  400cd/m² INDUSTRIAL LCD DISPLAY

Description
Model: LQ125T1JX03B Diagonal Size: 12.5 Inch
Pixel Format: 2560(RGB)×1440 [Quad-HD] 235PPI Luminance: 400 Cd/m² (Typ.)
Interface Type: EDP (4 Lanes) , 40 Pins Connector Light Source: WLED , 15K Hours , With LED Driver
Viewing Angle: 80/80/80/80 Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

LVDS TFT LCD Panel

,

SVGA Sharp TFT LCD Display

LQ125 Series   LQ125T1JX03C   LQ125T1JX03B



Sharp LQ125T1JX03B Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.25/1.45 (Typ./Max.)(5 points)





Sharp LQ125T1JX03B Mechanical Details

Pixel Features :
Number of Pixel
2560(RGB)×1440, Quad-HD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.036×0.108 mm
Pixel Pitch(W×H)
0.108×0.108 mm [235PPI]
Physical Size :
Active Viewing
276.48(W)×155.52(H) mm
Overall Dim.
282.68(W)×169.93(H) mm
Bezel Opening
-
Overall Depth
2.1/4.9 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Fixation :
Without
Other Detail :
Mass
160/170g (Typ./Max.)
Surface
Glare (Haze 0%), Hard coating





Sharp LQ125T1JX03B Interface Detail

Signal Electrical :
Input Current
406/630mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
1.34/2.08W (Typ./Max.)
Signal Interface
eDP (4 Lanes)

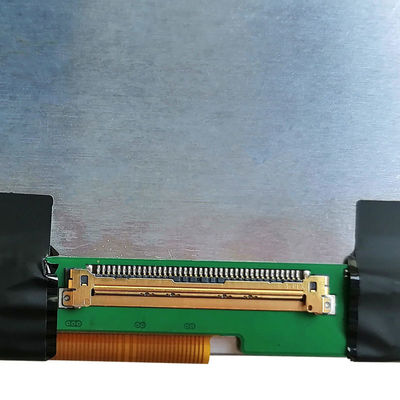

Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-040E-12
0.5 mm
40 pins
1 pcs


Sharp LQ125T1JX03B Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
15K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
5.0/12.0/21.0V (Min./Typ./Max.)
Input Current
-
Consumption
2.8/3.2W (Typ./Max.)





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
