Product Details:
|
| Panel Model: | LQ133K1LA4A | Resolution: | 1280(RGB)×800, WXGA, 113PPI |
|---|---|---|---|
| Panel Size: | 13.3" | Brightness: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/50/60 | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins Connector |
| Lamp Type: | 1 Pcs CCFL , 12K Hours , Without Driver | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -30 ~ 65 °C |
| High Light: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
| Panel Size : | 13.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.0745×0.2235 mm | 0.2235×0.2235 mm [113PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 286.08×178.8 mm | - | 299×195 mm | 5.2 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | Wedge (PCBA Bent, T≥5.2mm) | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | 320/350g (Typ.Max.) | Glare (Haze 0%), Hard coating (2H), Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 450:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/50/60 (Typ.)(CR≥10) | 6 o'clock | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6007K | 262K (6-bit) | X:0.322; Y:0.332 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.10/1.30 (Typ./Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 290mA (Typ.) | 3.3V (Typ.) | 0.96W (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF19L-20P-1H | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C6B-070A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | Straight | 1 pcs | 12K(Min.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 3.0/6.0/6.5mA (Min./Typ./Max.) | 625V (Typ.) | 3.75W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 1350/1540V (Max.)(Ta=+25/0℃) | 45/58/80KHz (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |

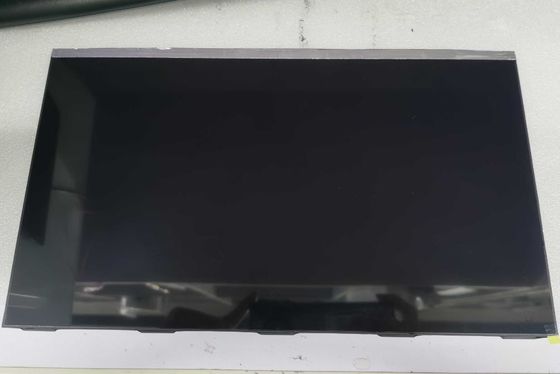

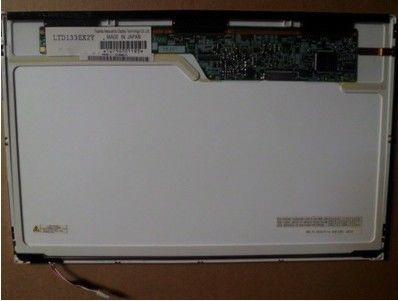

LQ133K1LA4A supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 286.08(W)×178.8(H) mm, outline size of 299(W)×195(H)×5.2(D) mm, with surface treament of Glare (Haze 0%), Hard coating (2H), Antireflection, net weight of 320/350g (Typ.Max.), shape stype of Wedge (PCBA Bent, T≥5.2mm). As a TN, Normally White, Transmissive LCM product, LQ133K1LA4A can provides 300 cd/m² display brightness 450:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).
