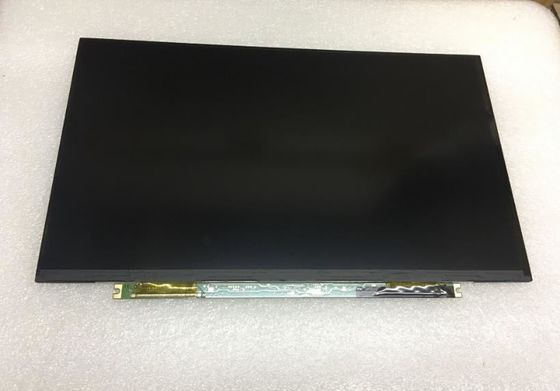

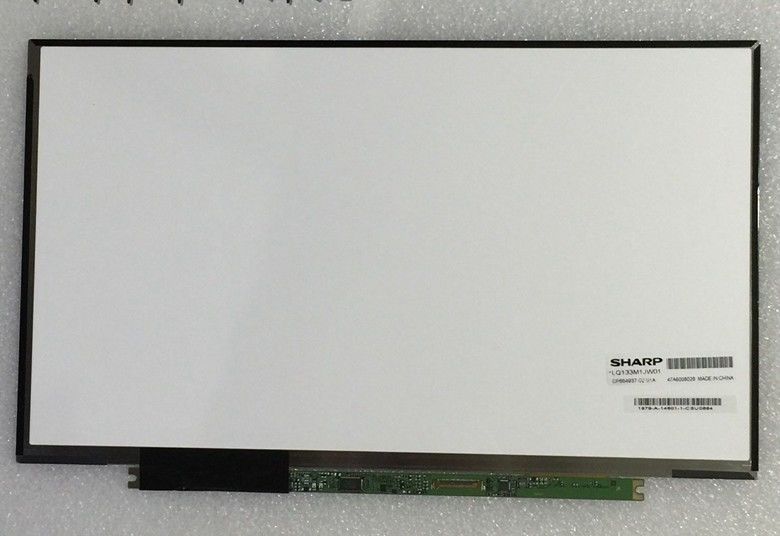

Product Details:
|
| Panel Model: | LQ133M1JW01 | Viewing Angle: | 89/89/89/89 |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 166PPI | Panel Size: | 13.3INCH |
| Brightness: | 300 Cd/m² (Typ.) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Signal Interface: | EDP (2 Lanes) , EDP1.3 , HBR1 (2.7G/lane) , 30 Pins Connector | Lamp Type: | WLED , 10K Hours , With LED Driver |
| Highlight: | LVDS TFT LCD Panel,SVGA Sharp TFT LCD Display |
||
LQ133 Series LQ133M1JW03 LQ133M1JW02 LQ133M1JW01
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.051×0.153 mm | Pixel Pitch(W×H) | 0.153×0.153 mm [166PPI] | |
| Physical Size : | Active Viewing | 293.76(W)×165.24(H) mm | Overall Dim. | 304.98(W)×187.95(H) mm |
| Bezel Opening | - | Overall Depth | 2.4±0.2 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 178g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 180/270mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.59W (Typ.) | Signal Interface | eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-030E-12 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 10K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 299/341mA (Typ./Max.) | Input Voltage | 7.0/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 3.59W (Typ.) | |||||
LQ133M1JW01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 304.98(W)×187.95(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 178g (Typ.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LQ133M1JW01 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver.
