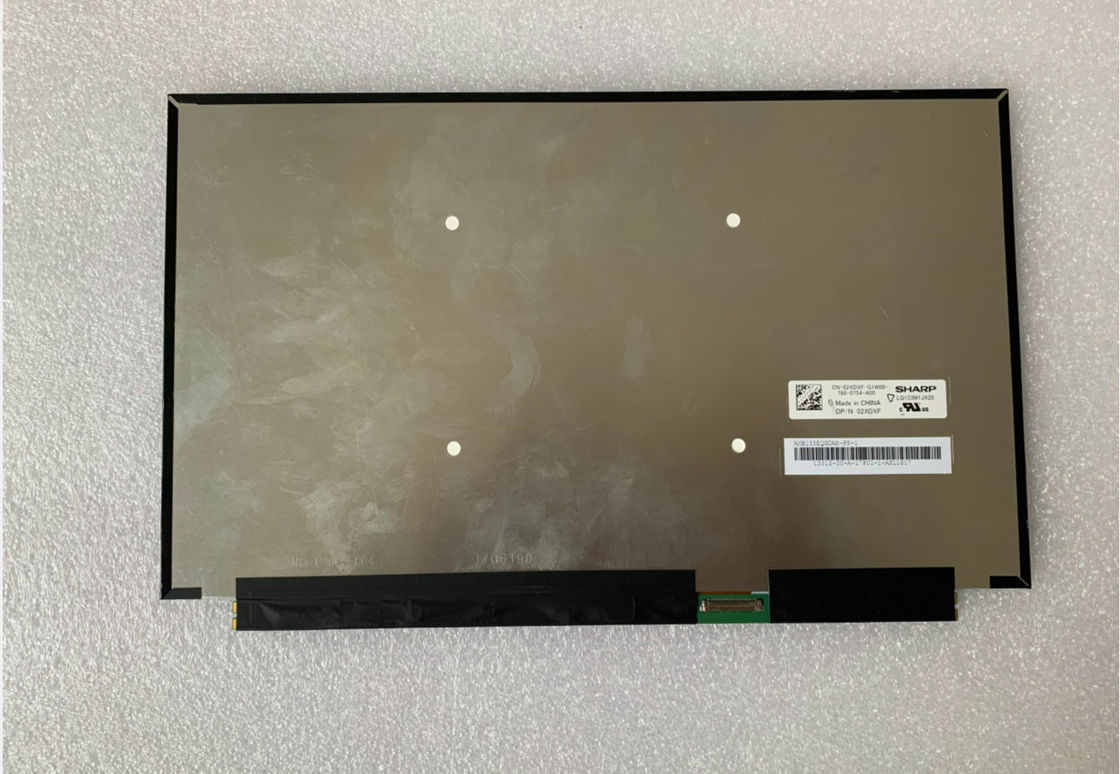

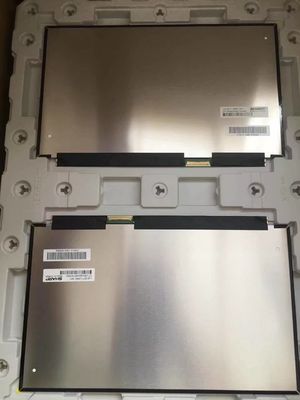

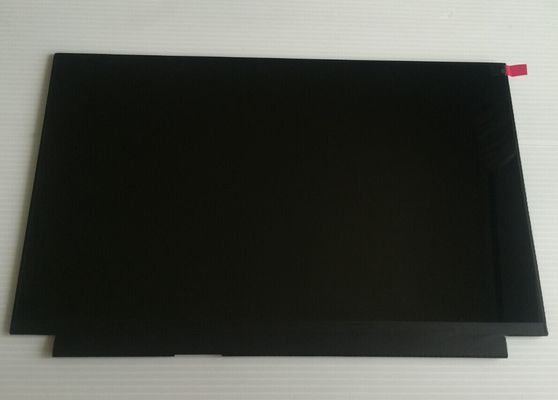

13.3" LCM 1920×1080RGB  300cd/m² LQ133M1JW15 Sharp TFT LCD Display

13.3" LCM 1920×1080RGB  300cd/m² LQ133M1JW15 Sharp TFT LCD Display
13.3" LCM 1920×1080RGB  300cd/m² LQ133M1JW15 Sharp TFT LCD Display 13.3" LCM 1920×1080RGB  300cd/m² LQ133M1JW15 Sharp TFT LCD Display 13.3" LCM 1920×1080RGB  300cd/m² LQ133M1JW15 Sharp TFT LCD Display

Large Image :  13.3" LCM 1920×1080RGB  300cd/m² LQ133M1JW15 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ133M1JW15
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 12.5 Kgs 544×434×210 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 3000PCS
Contact Now

13.3" LCM 1920×1080RGB  300cd/m² LQ133M1JW15 Sharp TFT LCD Display

Description
Model: LQ133M1JW15 Luminance: 300 Cd/m² (Typ.)
Pixel Format: 1920(RGB)×1080 [FHD] 166PPI Viewing Angle: 88/88/88/88
Interface Type: EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins Connector Light Source: WLED , 10K Hours , With LED Driver
Diagonal Size: 13.3" Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

LVDS TFT LCD Panel

,

SVGA Sharp TFT LCD Display

LQ133 Series LQ133M1JW23 LQ133M1JW21 LQ133M1JW15 LQ133M1JW07

Sharp LQ133M1JW15 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.051×0.153 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.153×0.153 (H×V) [166PPI]
Mechanical Size :
Active Area(mm)
293.76(H) × 165.24(V)
Bezel Area(mm)
-
Outline Dim.(mm)
300.26(H) × 188.25(V)
Depth(mm)
2.2/2.4 (Typ./Max)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
225g (Max.)
Treatment
Antiglare, Hard coating (3H)





Sharp LQ133M1JW15 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
100% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ133M1JW15 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
200/260mA (Typ./Max.)
Consumption
0.66/0.78W (Typ./Max.)
Signal Type :
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-030E-12
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A





Sharp LQ133M1JW15 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
10K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
7.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
260/295mA (Typ./Max.)
Consumption
3.12/3.54W (Typ./Max.)





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
