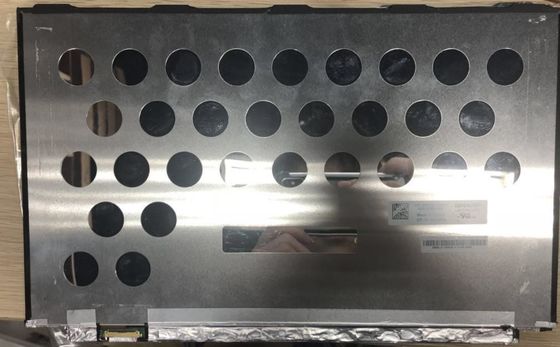

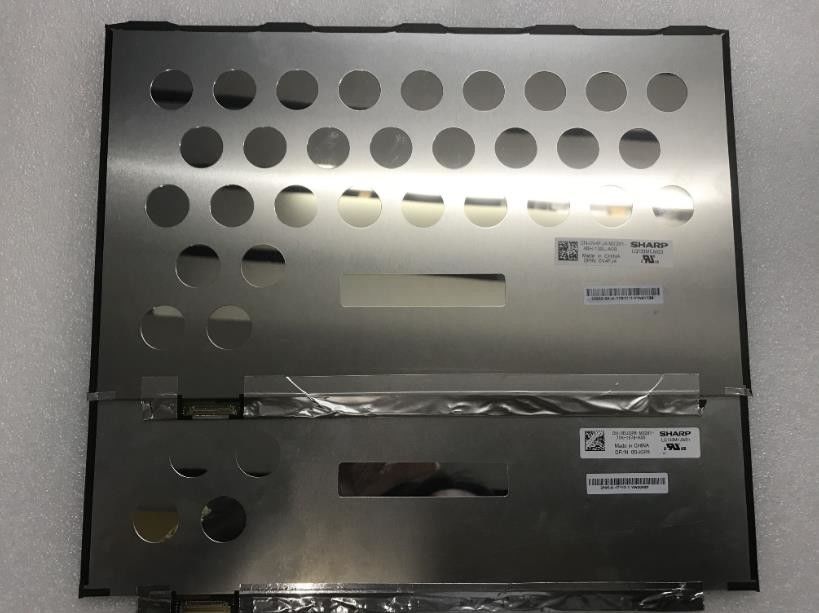

LQ133M1JW23 Sharp 13.3" LCM 1920×1080RGB  400cd/m² INDUSTRIAL LCD DISPLAY

LQ133 Series LQ133M1JW23 LQ133M1JW21 LQ133M1JW15 LQ133M1JW07

LQ133M1JW23 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 299.46(W)×185.4(H)×2.35(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 190/210g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a IPS, Normally Black, Transmissive LCM product, LQ133M1JW23 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver.
