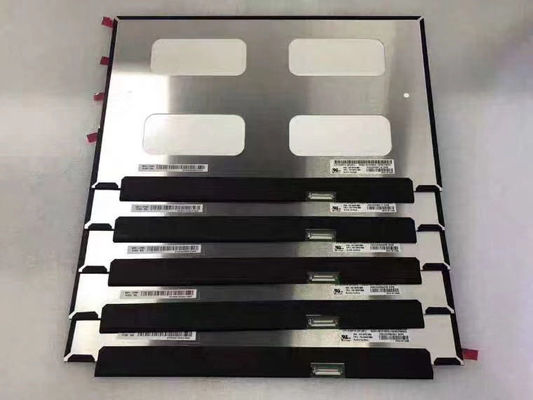

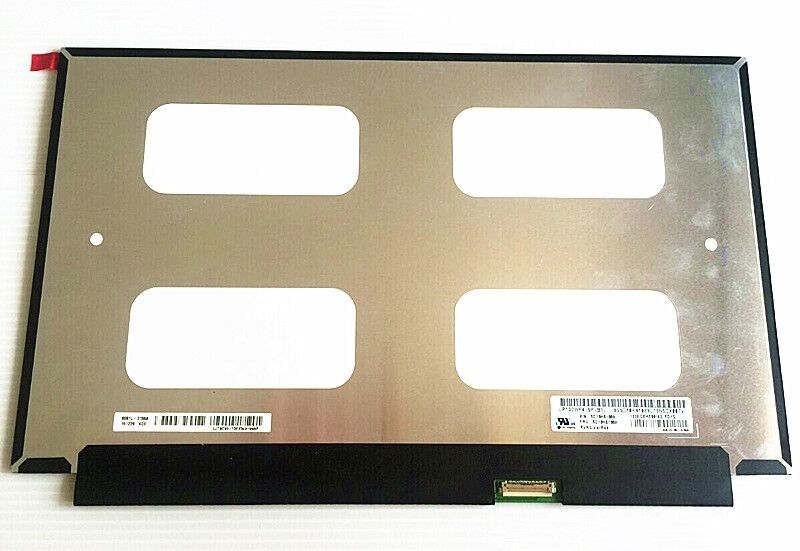

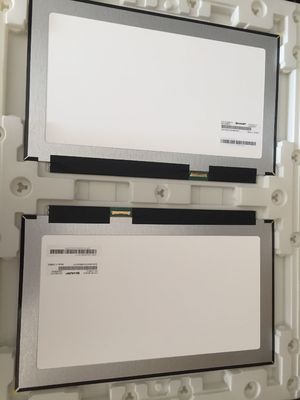

13.3 LCM 1920×1080RGB  400cd/m² LQ133M1JX15 Sharp TFT LCD Display

13.3 LCM 1920×1080RGB  400cd/m² LQ133M1JX15 Sharp TFT LCD Display
13.3 LCM 1920×1080RGB  400cd/m² LQ133M1JX15 Sharp TFT LCD Display 13.3 LCM 1920×1080RGB  400cd/m² LQ133M1JX15 Sharp TFT LCD Display 13.3 LCM 1920×1080RGB  400cd/m² LQ133M1JX15 Sharp TFT LCD Display

Large Image :  13.3 LCM 1920×1080RGB  400cd/m² LQ133M1JX15 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ133M1JX15
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 12.5 Kgs 544×434×210 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 1500PCS
Contact Now

13.3 LCM 1920×1080RGB  400cd/m² LQ133M1JX15 Sharp TFT LCD Display

Description
Model Name: LQ133M1JX15 Luminance: 400cd/m²
Pixel Number: 1920(RGB)×1080 (FHD) 166PPI Screen Size: 13.3 Inch
Signal Type: EDP (2 Lanes) , EDP1.2 , HBR1 (2.7G/lane) , 30 Pins Connector Backlight: WLED , 10K Hours , With LED Driver
Viewing Angle: 88/88/88/88 Max. Ratings: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Highlight:

LVDS TFT LCD Panel

,

SVGA Sharp TFT LCD Display

LQ133 Series   LQ133M1LW02   LQ133M1JX26   LQ133M1JX20   LQ133M1JX15



Sharp LQ133M1JX15 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.25/1.53 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
100% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ133M1JX15 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.051×0.153 mm
Pixel Pitch(W×H)
0.153×0.153 mm [166PPI]
Physical Size :
Active Viewing
293.76(W)×165.24(H) mm
Overall Dim.
300.26(W)×188.25(H) mm
Bezel Opening
-
Overall Depth
2.4/2.5 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Fixation :
Without
Other Detail :
Mass
225g (Max.)
Surface
Glare (Haze 0%), Hard coating (3H)





Sharp LQ133M1JX15 Interface Detail

Signal Electrical :
Input Current
200/260mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.66/0.78W (Typ./Max.)
Signal Interface
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-030E-76
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A





Sharp LQ133M1JX15 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
10K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
5.0/12.0/15.0V (Min./Typ./Max.)
Input Current
260/295mA (Typ./Max.)
Consumption
3.12/3.54W (Typ./Max.)



FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
