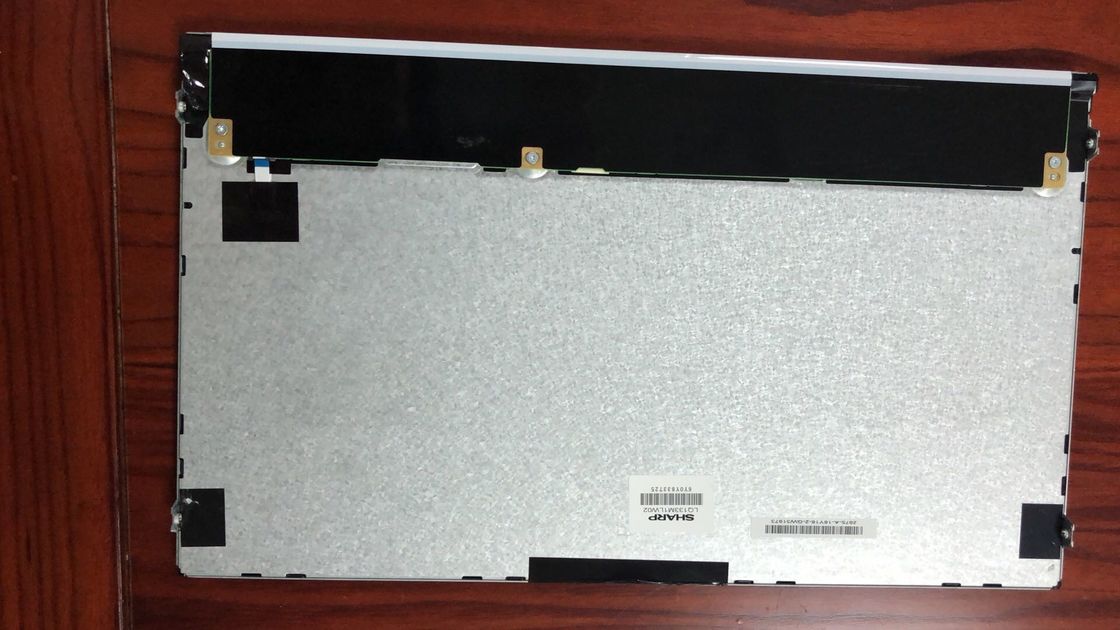

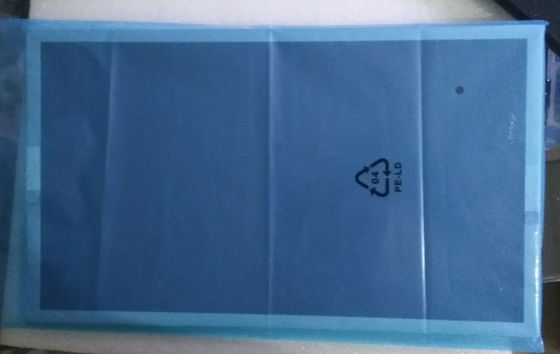

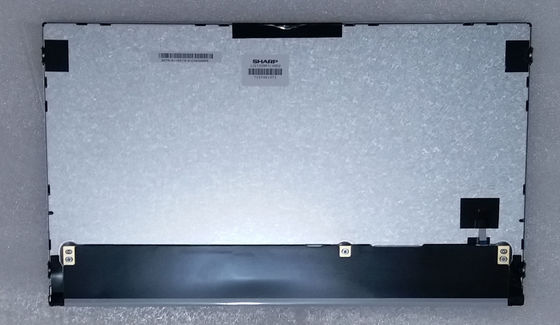

LQ133M1LW02 Sharp 13.3" 1920×1080RGB  400cd/m² INDUSTRIAL LCD DISPLAY

LQ133M1LW02 Sharp 13.3" 1920×1080RGB  400cd/m² INDUSTRIAL LCD DISPLAY
LQ133M1LW02 Sharp 13.3" 1920×1080RGB  400cd/m² INDUSTRIAL LCD DISPLAY LQ133M1LW02 Sharp 13.3" 1920×1080RGB  400cd/m² INDUSTRIAL LCD DISPLAY LQ133M1LW02 Sharp 13.3" 1920×1080RGB  400cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LQ133M1LW02 Sharp 13.3" 1920×1080RGB  400cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ133M1LW02
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 20 pcs / box 18.5 Kgs 430×610×340 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 3000PCS
Contact Now

LQ133M1LW02 Sharp 13.3" 1920×1080RGB  400cd/m² INDUSTRIAL LCD DISPLAY

Description
Model Name: LQ133M1LW02 Screen Size: 13.3inch
Viewing Angle: 85/85/85/85 Pixel Number: 1920(RGB)×1080 (FHD) 166PPI
Luminance: 400 Cd/m² (Typ.) Signal Type: LVDS (2 Ch, 8-bit) , 30 Pins Connector
Backlight: WLED , 70K Hours , With LED Driver Max. Ratings: Storage Temp.: -20 ~ 80 °C Operating Temp.: 0 ~ 80 °C
Highlight:

LVDS TFT LCD Panel

,

SVGA Sharp TFT LCD Display


LQ133 Series    LQ133M1LW02     LQ133M1JX26     LQ133M1JX20     LQ133M1JX15





Sharp LQ133M1LW02 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
30 (Typ.)(Tr+Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.320; Wy:0.330
Support Color
16.7M (8-bit)
Color Temperature
6116K
White Variation
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
86%
sRGB
100% coverage
Adobe RGB
84% coverage
DCI-P3
89% coverage
Rec.2020
64% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ133M1LW02 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.051×0.153 mm
Pixel Pitch(W×H)
0.153×0.153 mm [166PPI]
Physical Size :
Active Viewing
293.76(W)×165.24(H) mm
Overall Dim.
310.6(W)×182.2(H) mm
Bezel Opening
-
Overall Depth
10.9/13.1 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
710g (Typ.)
Surface
Antiglare, Hard coating (3H)



Sharp LQ133M1LW02 Interface Detail

Signal Electrical :
Input Current
200/300mA (Typ./Max.)
Input Voltage
5.0V (Typ.)
Consumption
-
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-X30SSLA-HF
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-200A



Sharp LQ133M1LW02 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
70K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
SM10B-SHLS-TF
1.0 mm
10 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0V (Typ.)
Input Current
650/900mA (Typ./Max.)





FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
