Product Details:
|
| Panel Model: | LQ133Z1JW01 | Panel Size: | 13.3inch |
|---|---|---|---|
| Resolution: | 3200(RGB)×1800, 276PPI | Viewing Angle: | 89/89/89/89 |
| Signal Interface: | EDP (4 Lanes) , 40 Pins Connector | Lamp Type: | WLED , 15K Hours , With LED Driver |
| Touch Screen: | Without | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
| High Light: | CCFL TFT LCD Screen,SVGA Sharp LCD Display |
||
LQ133 Series LQ133Z1JW26 LQ133Z1JW25 LQ133Z1JW23 LQ133Z1JW21 LQ133Z1JW01
| Basic Information : | Luminance | - | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | VA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.53 (Max.)(5/13 points) |
| Pixel Features : | Number of Pixel | 3200(RGB)×1800 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0306×0.0918 mm | Pixel Pitch(W×H) | 0.0918×0.0918 mm [276PPI] | |
| Physical Size : | Active Viewing | 293.76(W)×165.24(H) mm | Overall Dim. | 299.46(W)×185.4(H) mm |
| Bezel Opening | - | Overall Depth | 2.15/4.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | eDP (4 Lanes) | |||

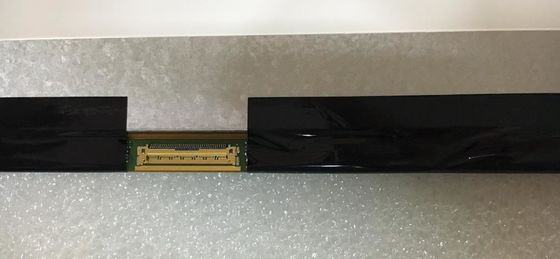

| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20682-040e-02 | 1 pcs | 0.4 mm | 40 pins | ||

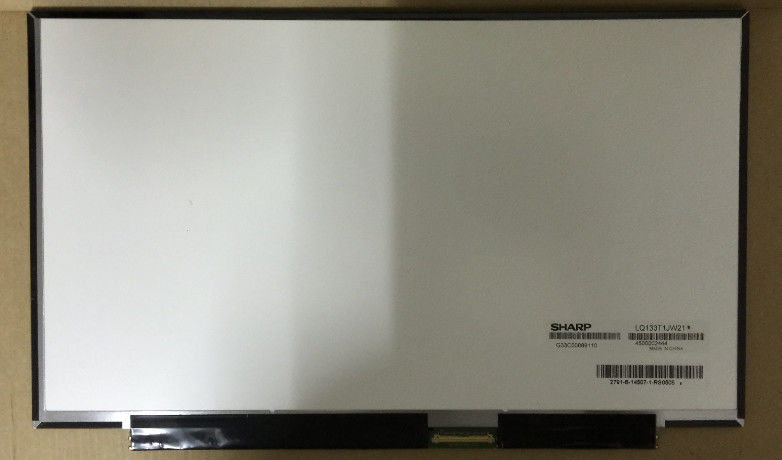

LQ133Z1JW01 supports display 3200(RGB)×1800 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 276 PPI. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 299.46(W)×185.4(H)×4.7(D) mm, shape stype of Slim (PCBA Flat, T≤3.2mm). As a VA, Normally Black, Transmissive LCM product, LQ133Z1JW01 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ133Z1JW01 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
